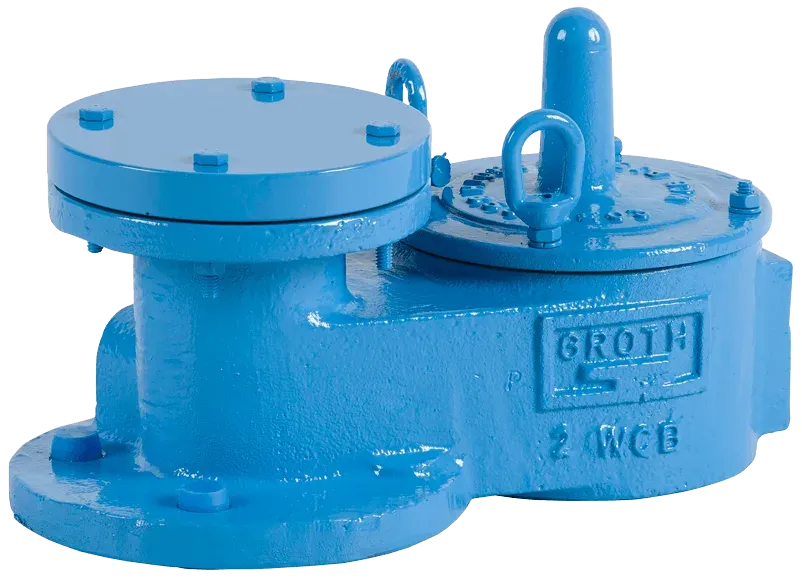

Vacuum Relief Valve, Top Mount MODEL 1300A
Vacuum Relief Valve, Top Mount MODEL 1300A
Vacuum Relief Valve, Top Mount MODEL 1300A Vacuum Relief Valve, Top Mount MODEL 1300A

Vacuum Relief Valve, Top Mount MODEL 1300A

Price on request
Request a quote

We reply Monday to Friday, 9:00 a.m. to 6:00 p.m. (Mexico City time) · +52 55 2458 7374

Description

The Groth 1300A Series is used when vacuum relief is the only requirement. The necessary inbreathing relief under working conditions is achieved by a spring- or weight-loaded pallet. This feature reduces the possibility of tank damage due to an excessive vacuum condition. The 1300A Series helps provide greater fire protection and safety. The valve size must be selected to meet the required vacuum relief under operating and thermal conditions.

How does the 1300A differ?

GROTH vacuum relief valves are selected by mounting and loading: the 1300A mounts on top of the tank (up to 111 mbarg); the 1360A mounts on the side or in-line (up to 142 mbarg); the 1361A is the spring-loaded side-mount version for vacuum settings of 1 to 12 psig.

  • Mounting: top
  • Vacuum setting: 2.15 to 111 mbarg
  • Sizes: 2" to 12"
  • Materials: aluminum, carbon steel or stainless steel

Manufacturer data (Groth Corporation).

Modular Construction
Air-cushioned seat
Fluoropolymer seat diaphragms that minimize sticking caused by resinous vapors and atmospheric moisture
Self-draining housing body and drip rings to protect the seat surfaces from condensate and freezing
Design prevents vacuum buildup due to vent obstructions or blockages

• Sizes: 2” (DN50) to 12” (DN300)

• Vacuum Settings: 0.5 osi to 17.3 osi (2.15 mbarg to 1.19 barg)

• Materials: Aluminum, Carbon Steel, Stainless Steel, special materials upon request

• Certification: ATEX and PED Approval

Seat Diaphragm Options: FKM, Buna-N or other materials

×
×
