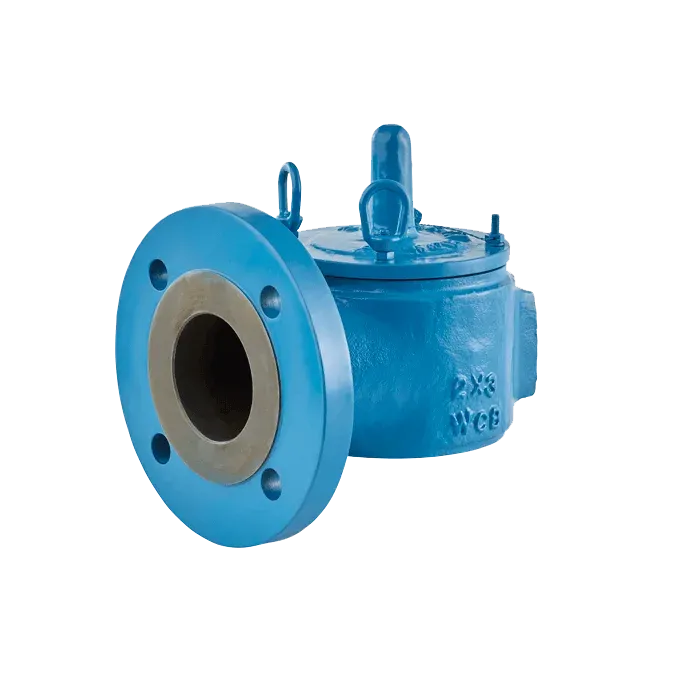

Vacuum Relief Valve, Side Mount MODEL 1360A
We reply Monday to Friday, 9:00 a.m. to 6:00 p.m. (Mexico City time) · +52 55 2458 7374
Description
The Groth Model 1360A Vacuum Relief Valve is used when vacuum relief is the only requirement. The Model 1360A can be side-mounted on the tank body or connected via piping. The necessary inbreathing relief under working conditions is achieved by a spring- or weight-loaded pallet. The Model 1360A helps provide greater fire protection and safety. The valve size must be selected to meet the required vacuum relief under operating and thermal conditions.
How does the 1360A differ?
GROTH vacuum relief valves are selected by mounting and loading: the 1300A mounts on top of the tank (up to 111 mbarg); the 1360A mounts on the side or in-line (up to 142 mbarg); the 1361A is the spring-loaded side-mount version for vacuum settings of 1 to 12 psig.
- Mounting: side or in-line, weight-loaded
- Vacuum setting: 2.15 to 142 mbarg
- Sizes: 2" to 14"
- Materials: aluminum, carbon steel or stainless steel
Manufacturer data (Groth Corporation).
• Modular Construction
• Air-cushioned seat
• Fluoropolymer seat diaphragms that minimize sticking caused by resinous vapors and atmospheric moisture
• Self-draining housing body and drip rings to protect the seat surfaces from condensate and freezing
• Design prevents vacuum buildup due to vent blockages or obstructions
• Sizes: from 3” (DN80) to 14” (DN350)
• Vacuum Settings: 0.5 osi to 17.3 osi (2.15 mbarg to 1.19 barg)
• Materials: Aluminum, Carbon Steel, Stainless Steel, special materials upon request
• Certification: ATEX and PED Approval
• Seat Diaphragm Options: FKM, Buna-N or other materials
• Available with flange, consult factory
