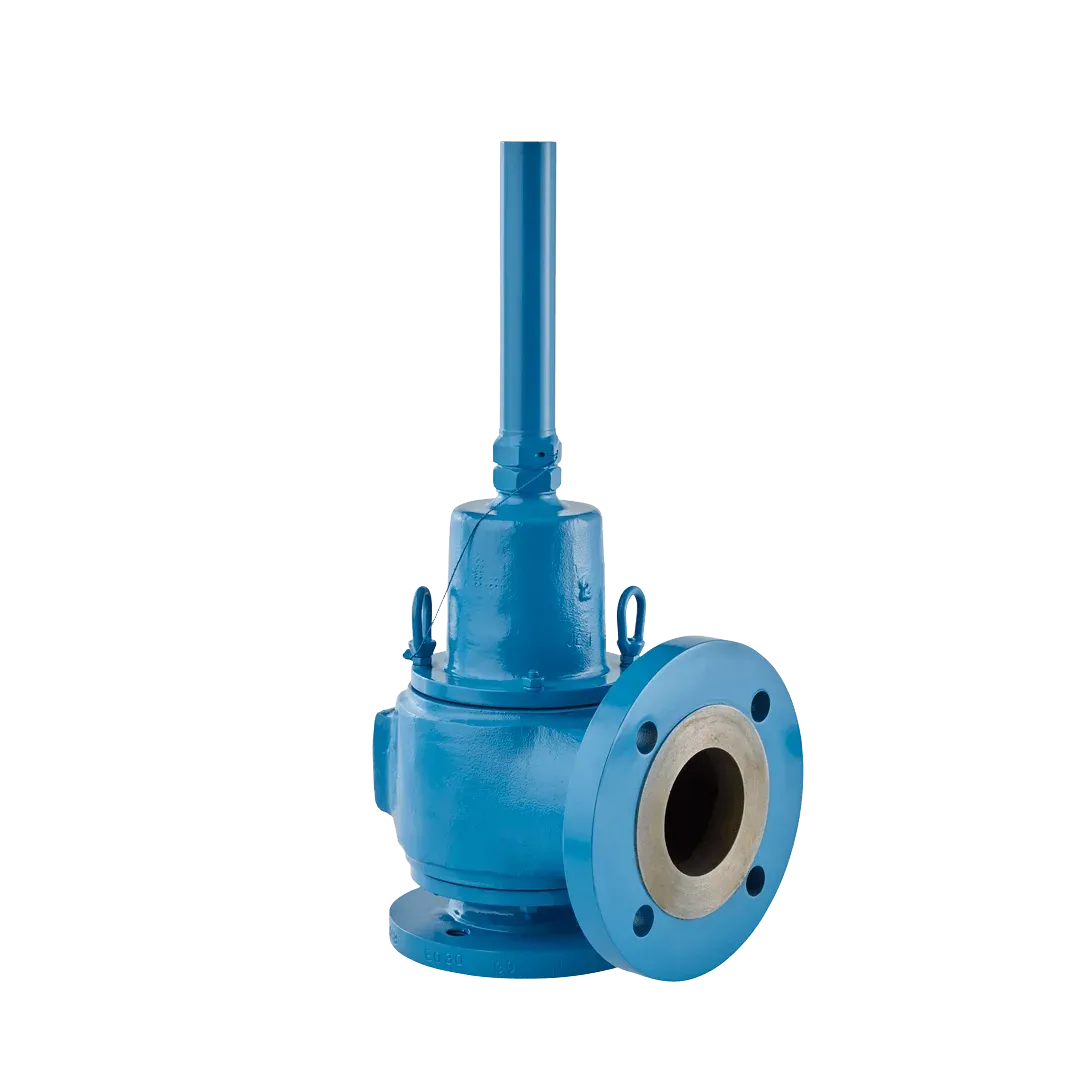

Vacuum Relief Valve, Side Mount, Spring-Loaded MODEL 1361A
Vacuum Relief Valve, Side Mount, Spring-Loaded MODEL 1361A
Vacuum Relief Valve, Side Mount, Spring-Loaded MODEL 1361A Vacuum Relief Valve, Side Mount, Spring-Loaded MODEL 1361A

Vacuum Relief Valve, Side Mount, Spring-Loaded MODEL 1361A

Price on request
Request a quote

We reply Monday to Friday, 9:00 a.m. to 6:00 p.m. (Mexico City time) · +52 55 2458 7374

Description

Groth Model 1361A units are used when vacuum relief is the only requirement.

How does the 1361A differ?

GROTH vacuum relief valves are selected by mounting and loading: the 1300A mounts on top of the tank (up to 111 mbarg); the 1360A mounts on the side or in-line (up to 142 mbarg); the 1361A is the spring-loaded side-mount version for vacuum settings of 1 to 12 psig.

  • Mounting: side-mounted, spring-loaded
  • Vacuum setting: 68.9 to 827 mbarg (1 to 12 psig)
  • Sizes: 2" to 14"
  • Materials: aluminum, carbon steel or stainless steel

Manufacturer data (Groth Corporation).

The necessary inbreathing relief under working conditions is achieved by a spring- or weight-loaded pallet.

This feature reduces the possibility of tank damage due to an excessive vacuum condition.

The valve size must be selected to meet the required vacuum relief under operating and thermal conditions.

Modular construction

Air-cushioned seat

Fluoropolymer seat diaphragms that minimize sticking caused by resinous vapors and atmospheric moisture

Self-draining housing body and drip rings to protect the seat surfaces from condensate and freezing

Design that prevents vacuum buildup due to vent obstructions or blockages

  • Sizes: from 3" (DN80) to 14" (DN350)

  • Vacuum settings: from 1 psig to 12 psig (68.9 mbarg to 827 mbarg)

  • Materials: Aluminum, Carbon Steel, Stainless Steel, special materials upon request

  • Certification: ATEX and PED Approval

Seat Diaphragm Options: FKM, Buna-N or other materials
Available with flange, consult factory

×
×
