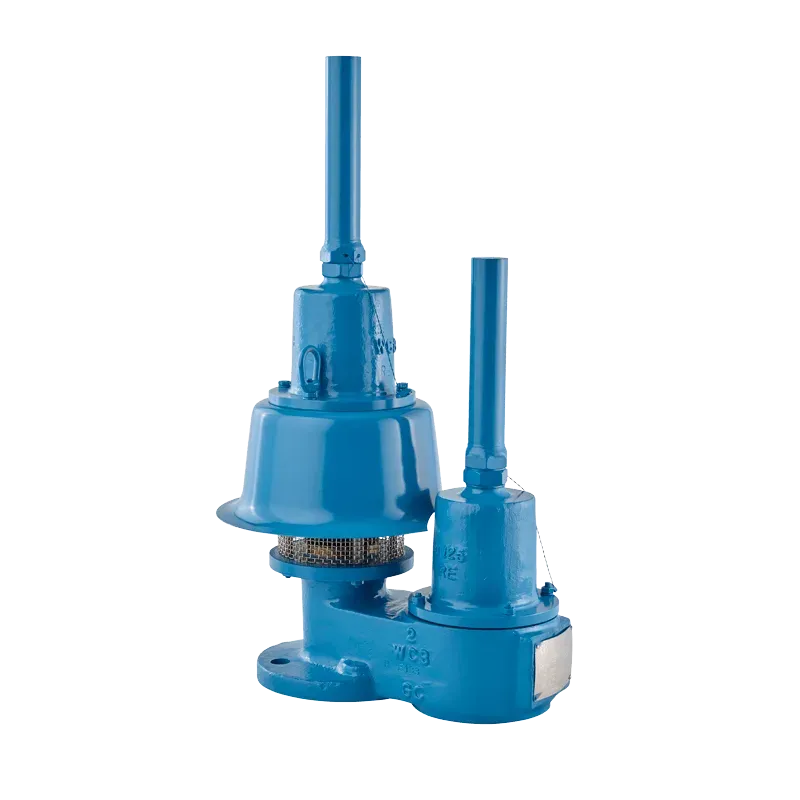

Pressure / Vacuum Relief Valve with Pressure and Vacuum Springs MODEL 1203A
Pressure / Vacuum Relief Valve with Pressure and Vacuum Springs MODEL 1203A
Pressure / Vacuum Relief Valve with Pressure and Vacuum Springs MODEL 1203A Pressure / Vacuum Relief Valve with Pressure and Vacuum Springs MODEL 1203A

Pressure / Vacuum Relief Valve with Pressure and Vacuum Springs MODEL 1203A

Price on request
Request a quote

We reply Monday to Friday, 9:00 a.m. to 6:00 p.m. (Mexico City time) · +52 55 2458 7374

Description

The Model 1200A is designed to protect your tank from damage caused by overpressure or excessive vacuum. Costly product evaporation losses due to normal tank "breathing" are greatly reduced. Because the Model 1200A retains toxic vapors, atmospheric contamination is minimized. This helps provide greater fire protection and safety. The 1203B pressure/vacuum relief valve is a spring-loaded version of the 1200A PVRV, designed for use at pressures or vacuums of 1 PSIG and above.

How does the 1203A differ?

The 1200 series has four variants that differ only in how each side is loaded: 1200A (weight-loaded pressure and vacuum), 1201B (spring-loaded pressure), 1202B (spring-loaded vacuum) and 1203A (springs on both sides). A spring is used when the setting is 1 psig or higher. All vent to atmosphere; to route vapors to a recovery system, the 1220 series with a flanged outlet is available.

  • Loading: springs on pressure and vacuum
  • Sizes: 2" to 12" (DN50 to DN300)
  • Settings: pressure from 1 to 15 psig; vacuum from 1 to 12 psig
  • Materials: aluminum, carbon steel, stainless steel or fiberglass; Buna-N, fluoropolymer or FKM diaphragms

Manufacturer data (Groth Corporation).

Peripheral and central seat guides ensure reliable, repeatable performance.
A wide seat and an air-cushion seal keep leakage low long after the valve is in service.
The self-draining housing body and drip rings protect seating surfaces against condensate and freezing, increasing operational reliability.
Fluoropolymer seat diaphragms are standard to minimize sticking caused by resinous vapors and atmospheric moisture.

Size: From 2″ (DN50) to 12″ (DN300)

Material: Available in aluminum, carbon steel, stainless steel, fiberglass, and other materials

Pressure: 1 psig to 15 psig (68.9 mbarg to 1.03 barg)

Vacuum: 1 psig to 12 psig (68.9 mbarg to 827 mbarg)

Certification: ATEX and PED approval

Available drilling classes: 150# ANSI, PN10, PN16, JIS
Seat diaphragms: Buna-N, Fluoropolymer, FKM and others
Steam jacket
Spacer

×
×
