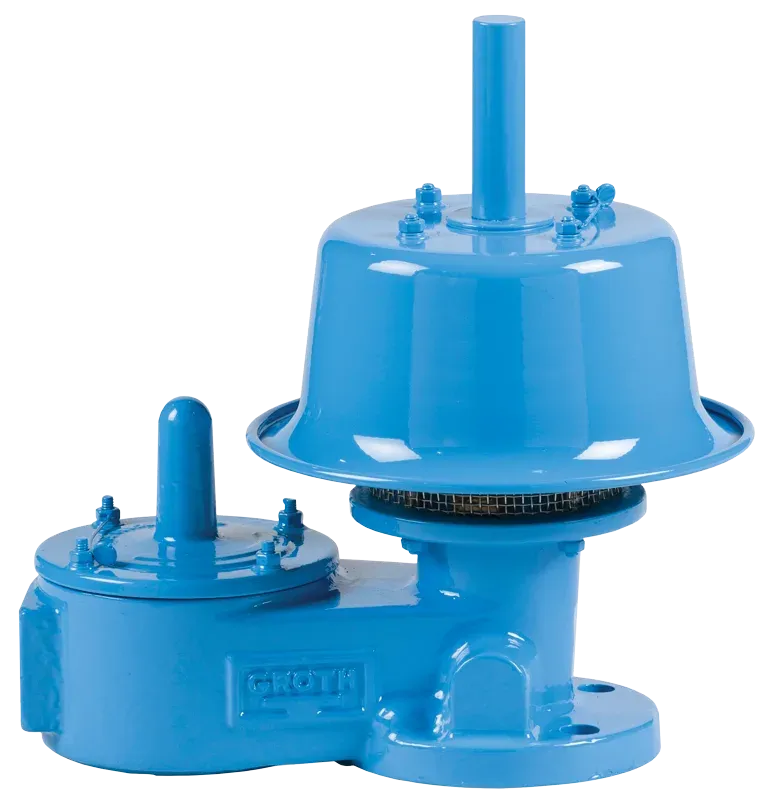

Pressure / Vacuum Relief Valve MODEL 1200A
Pressure / Vacuum Relief Valve MODEL 1200A
Pressure / Vacuum Relief Valve MODEL 1200A Pressure / Vacuum Relief Valve MODEL 1200A

Pressure / Vacuum Relief Valve MODEL 1200A

Price on request
Request a quote

We reply Monday to Friday, 9:00 a.m. to 6:00 p.m. (Mexico City time) · +52 55 2458 7374

Description

The Model 1200A pressure and vacuum relief valve is designed to protect your tank from damage caused by overpressure or excessive vacuum. Costly product evaporation losses due to normal tank "breathing" are considerably reduced. Because the Model 1200A retains toxic vapors, atmospheric pollution is minimized, helping to provide greater fire protection and safety.

How does the 1200A differ?

The 1200 series has four variants that differ only in how each side is loaded: 1200A (weight-loaded pressure and vacuum), 1201B (spring-loaded pressure), 1202B (spring-loaded vacuum) and 1203A (springs on both sides). A spring is used when the setting is 1 psig or higher. All vent to atmosphere; to route vapors to a recovery system, the 1220 series with a flanged outlet is available.

  • Loading: weight-loaded pressure and vacuum
  • Sizes: 2" to 12" (DN50 to DN300)
  • Series setting range: pressure from 0.5 oz/in² to 15 psig; vacuum from 0.5 oz/in² to 12 psig (weight-loaded, maximum approx. 11 to 16 oz/in² depending on size)
  • Materials: aluminum, carbon steel, stainless steel or fiberglass; Buna-N, fluoropolymer or FKM diaphragms

Manufacturer data (Groth Corporation).

Peripheral and central seat guides ensure reliable, repeatable performance.

A wide seat and an air-cushion seal keep leakage low long after the valve enters service.

The self-draining valve body and drip rings protect the seat surfaces from condensate and freezing, increasing operational reliability.

Fluoropolymer seat diaphragms are standard to minimize sticking caused by resinous vapors and atmospheric moisture.

Size: 2″ (DN 50) to 12″ (DN 300)

Material: Available in aluminum, carbon steel, stainless steel, fiberglass, and other materials

Pressure: 0.5 osig to 15 psig (2.15 mbarg to 1.03 barg)

Vacuum: 0.5 osig to 7.35 psig (2.15 mbarg to 506 mbarg)

Certification: ATEX and PED approval

Available drilling classes: 150# ANSI, PN10, PN16, JIS

Seat diaphragms: Buna-N, fluoropolymer, FKM, and others

Steam jacket

Spacer

×
×
