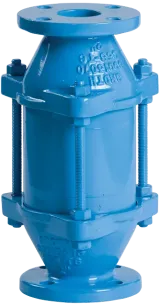

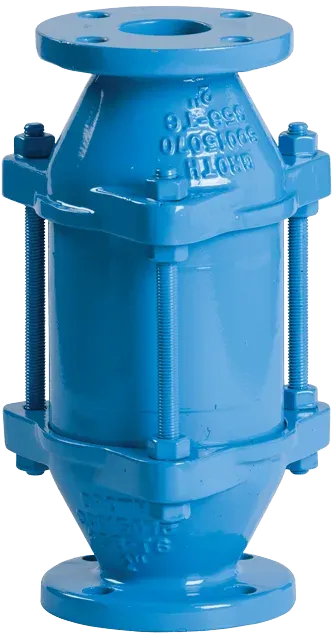

In-Line Vertical – Model 7588 ATEX Certified
We reply Monday to Friday, 9:00 a.m. to 6:00 p.m. (Mexico City time) · +52 55 2458 7374
Description
The Model 7588 is a vertical in-line deflagration flame arrester designed to inhibit flame propagation in gas piping systems and protect low-pressure tanks containing flammable liquids. Flame arresters protect low-flash-point liquids from external ignition sources, providing greater fire protection and safety.
How does the 7588 differ?
GROTH ATEX-certified (EN ISO 16852) deflagration flame arresters are distinguished by mounting and gas group: 7678 is a vertical end-of-line unit with weather hood; 7688 (vertical) and 7698 (horizontal) are in-line units for IIA gases (NEC D, MESG ≥ 0.90 mm); 7588 (vertical) and 7598 (horizontal) use the same body but are certified for IIA1 only (MESG ≥ 1.14 mm, methane-type gases).
- Mounting: in-line, vertical
- Gas group: IEC IIA1 / NEC D
- Burn time: 5 min
- Sizes: 2" to 12"
- Materials: aluminum, carbon steel or stainless steel body; 316L stainless steel element
Manufacturer data (Groth Corporation).
• Gas group IEC IIA1
Vertical installation only
Burn time tBT 5 minutes*
The modular design allows easy, cost-effective maintenance of the flame bank
The flame arrester element geometry maximizes flame-quenching capability while minimizing pressure drop
The proven crimped-ribbon spiral-wound flame arrester element offers reliable flame protection
*Test parameters based on EN ISO 16852:2010
Size: 2″ (DN50) to 12″ (DN300)
Material:
Standard housing material: carbon steel, stainless steel, aluminum
Standard flame arrester element material: 316L stainless steel
Pressure:
Maximum operating pressure: 15.7 psia (1.08 bara)
Test parameters based on EN ISO 16852:2010
Certification:
Certified under the ATEX Directive in compliance with EN ISO 16852:2010
Certificate number: IBExU12ATEX2018X
Thermocouple required for flame detection per ATEX code
Temperature:
Operating temperature range: -4 to 140 ºF (-20 to 60 ºC)
External paint or coating available
DIN or ASME/ANSI drilling available
Threaded instrument ports available
Factory-installed thermocouples for flame detection
