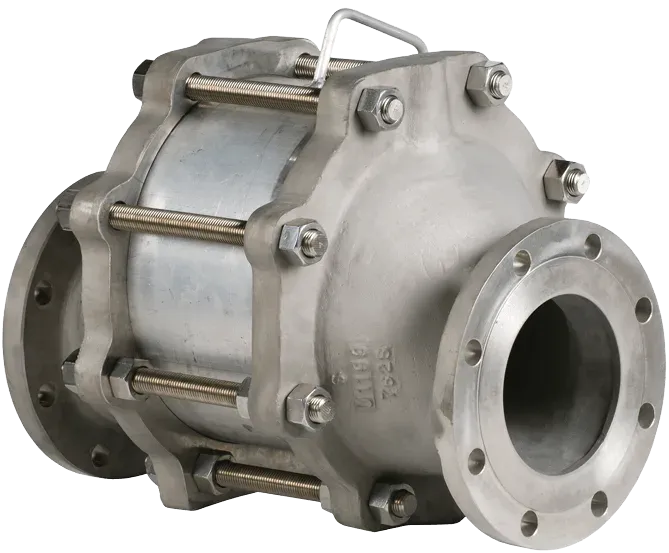

In-Line Horizontal – Model 7598 ATEX Certified
In-Line Horizontal – Model 7598 ATEX Certified
In-Line Horizontal – Model 7598 ATEX Certified In-Line Horizontal – Model 7598 ATEX Certified

In-Line Horizontal – Model 7598 ATEX Certified

Price on request
Request a quote

We reply Monday to Friday, 9:00 a.m. to 6:00 p.m. (Mexico City time) · +52 55 2458 7374

Description

The Groth Model 7598 is a horizontal in-line deflagration flame arrester designed to inhibit flame propagation in gas piping systems and protect low-pressure tanks containing flammable liquids. Flame arresters protect low-flash-point liquids from external ignition sources, helping to provide greater fire protection and safety.

How does the 7598 differ?

GROTH ATEX-certified (EN ISO 16852) deflagration flame arresters are distinguished by mounting and gas group: 7678 is a vertical end-of-line unit with weather hood; 7688 (vertical) and 7698 (horizontal) are in-line units for IIA gases (NEC D, MESG ≥ 0.90 mm); 7588 (vertical) and 7598 (horizontal) use the same body but are certified for IIA1 only (MESG ≥ 1.14 mm, methane-type gases).

  • Mounting: in-line, horizontal, eccentric body
  • Gas group: IEC IIA1 / NEC D
  • Burn time: 5 min
  • Sizes: 2" to 12"
  • Materials: aluminum, carbon steel or stainless steel body; 316L stainless steel element

Manufacturer data (Groth Corporation).

Horizontal installation

The flame arrester element geometry maximizes flame-quenching capability while minimizing pressure drop

The modular design allows easy, cost-effective maintenance of the flame bank

The proven crimped-ribbon spiral-wound flame arrester element offers reliable flame protection

The eccentric design allows horizontal installation to prevent liquid accumulation

Sizes: from 2” (DN50) to 12” (DN300)

Material: Aluminum, Carbon steel, Stainless steel

Flame arrester element material: 316L stainless steel

Certified under the ATEX Directive in compliance with EN ISO 16852:2010

Thermocouple required for flame detection per the ATEX Code

Maximum operating pressure: 15.7 psia (1.08 bara)

(Test parameters based on EN ISO 16852:2010)

Burn time tBT: 5 minutes

Suitable for NEC gas group D, IEC gas group IIA1

External paint or coating available

DIN or ASME/ANSI drilling available

Drains and instrument ports available

Factory-installed thermocouples for flame detection

×
×
