In-Line Horizontal – ATEX Certified MODEL 7698
In-Line Horizontal – ATEX Certified MODEL 7698
In-Line Horizontal – ATEX Certified MODEL 7698 In-Line Horizontal – ATEX Certified MODEL 7698

In-Line Horizontal – ATEX Certified MODEL 7698

Price on request
Request a quote

We reply Monday to Friday, 9:00 a.m. to 6:00 p.m. (Mexico City time) · +52 55 2458 7374

Description

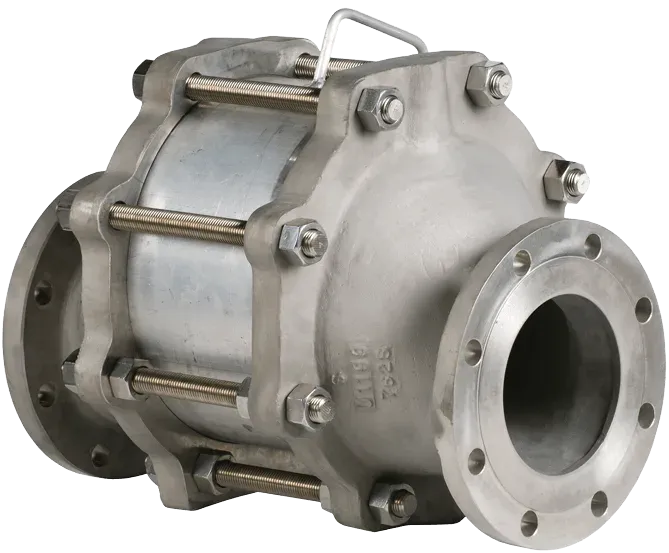

The Groth Model 7698 is a horizontal in-line deflagration flame arrester designed to inhibit flame propagation in gas piping systems and protect low-pressure tanks containing flammable liquids. Flame arresters protect low-flash-point liquids against external ignition sources. This provides enhanced fire protection and safety.

How does the 7698 differ?

GROTH ATEX-certified (EN ISO 16852) deflagration flame arresters are distinguished by mounting and gas group: 7678 is a vertical end-of-line unit with weather hood; 7688 (vertical) and 7698 (horizontal) are in-line units for IIA gases (NEC D, MESG ≥ 0.90 mm); 7588 (vertical) and 7598 (horizontal) use the same body but are certified for IIA1 only (MESG ≥ 1.14 mm, methane-type gases).

  • Mounting: in-line, horizontal, eccentric body that prevents liquid accumulation
  • Gas group: NEC D / IEC IIA
  • Sizes: 2" to 12"
  • Materials: aluminum, carbon steel or stainless steel body; 316L stainless steel element

Manufacturer data (Groth Corporation).

• Horizontal installation

• Eccentric design that minimizes liquid accumulation

• The flame arrester element geometry maximizes flame-quenching capability while minimizing pressure drop

• Spiral-wound crimped-ribbon flame element

• Modular design that allows easy and cost-effective maintenance of the flame bank

Size: 2" (DN50) to 12" (DN300)

Material:

Standard housing material: carbon steel, stainless steel, aluminum

Standard flame arrester element material: 316L stainless steel (Other materials available upon request)

Certification:

Certified under the ATEX Directive in compliance with EN ISO 16852:2011

Certificate number: IBExU12ATEX2015 X

A thermocouple is required for flame detection per the ATEX code

Temperature:

Operating temperature range: -4 to 140 ºF (-20 to 60 ºC)

External paint or coating available

Drilling available per DIN or ASME/ANSI standards

Drains and instrument ports available

Factory-installed thermocouples for flame detection

×
×
