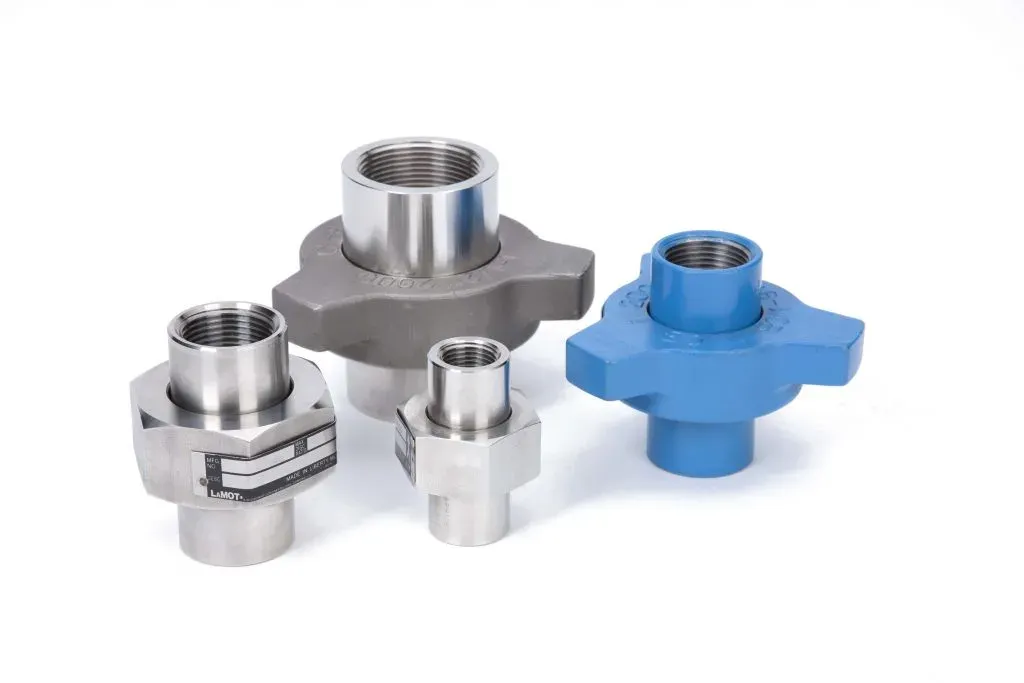

Union Holder Assembly
Union Holder Assembly
Union Holder Assembly Union Holder Assembly

Union Holder Assembly

Price on request
Rupture Disc Holders
Continental Disc
Request a quote

We reply Monday to Friday, 9:00 a.m. to 6:00 p.m. (Mexico City time) · +52 55 2458 7374

Description

The Continental Disc union holder assembly is a reusable union-nut-style holder for compact piping configurations: it combines easy installation with high pressure ratings in lines of 2" (50 mm) or smaller. It accepts standard or composite rupture discs; the SRA Union version accepts SRA discs.

Union holder specifications

Reusable holder for small-diameter process piping.

  • Sizes: 1/2" to 2" (13 to 50 mm)
  • Pressure: 7 to 6,000 psig depending on size and connection schedule
  • Materials: carbon steel or 316 stainless steel
  • Connections: welded or threaded, in any combination
  • Operating ratio: 70 to 90 % of marked burst pressure
  • ASME stamp: available

Manufacturer data (Continental Disc Corporation).

Inlet and outlet connections can be welded or threaded in any combination, in carbon steel or 316 stainless steel, and an ASME-stamped option is available. After an overpressure event, the union is opened and only the disc is replaced.

Unlike the screw-type and Tite-Seal holders (1/4" to 1", designed for miniature equipment), the union holder is built for 1/2" to 2" process piping.

×
×
