Screw-Type and Hermetic Seal Rupture Disc Holder Assemblies
We reply Monday to Friday, 9:00 a.m. to 6:00 p.m. (Mexico City time) · +52 55 2458 7374
Description
The screw-type assembly is a reusable disc holder for pressurized systems up to 15,000 psig, and the Tite-Seal is a sealed, disposable unit for systems under 3,000 psig. Both are designed for miniature applications such as air conditioning and refrigeration units, gas cylinders, and portable compressed air systems.
Screw type, Tite-Seal or union holder?
This sheet covers 1/4" to 1" miniature assemblies for small equipment (air conditioning, refrigeration, gas cylinders, portable compressed air). The screw type is reusable (only the disc is replaced) and reaches 15,000 psig; the Tite-Seal is disposable, with brass fittings, up to 3,000 psig. For 1/2" to 2" process piping, the union holder assembly is used.
- Sizes: 1/4" to 1" (3 to 25 mm)
- Burst pressure: 30 to 15,000 psig (Tite-Seal up to 3,000 psig)
- Operating ratio: 70 to 90 % of marked burst pressure
Manufacturer data (Continental Disc Corporation).
The Tite-Seal assembly features a rupture disc sealed between brass fittings. After relieving an overpressure condition, replacement is easily done by replacing the entire assembly.
A standard, composite, or SRA rupture disc is supplied separately from the screw-type holder.
Screw-type and Tite-Seal assemblies are available with a variety of inlet and outlet connections to suit different applications.
Give your miniature pressurized systems reliable, instant overpressure relief with the screw-type rupture disc holder and the Tite-Seal assembly, customized for small systems such as air conditioning systems, refrigeration units, hydraulic accumulators, gas cylinders, portable compressed air systems, and laboratory equipment.
Screw-type and Tite-Seal assemblies are available with a variety of inlet and outlet connections to suit different applications.

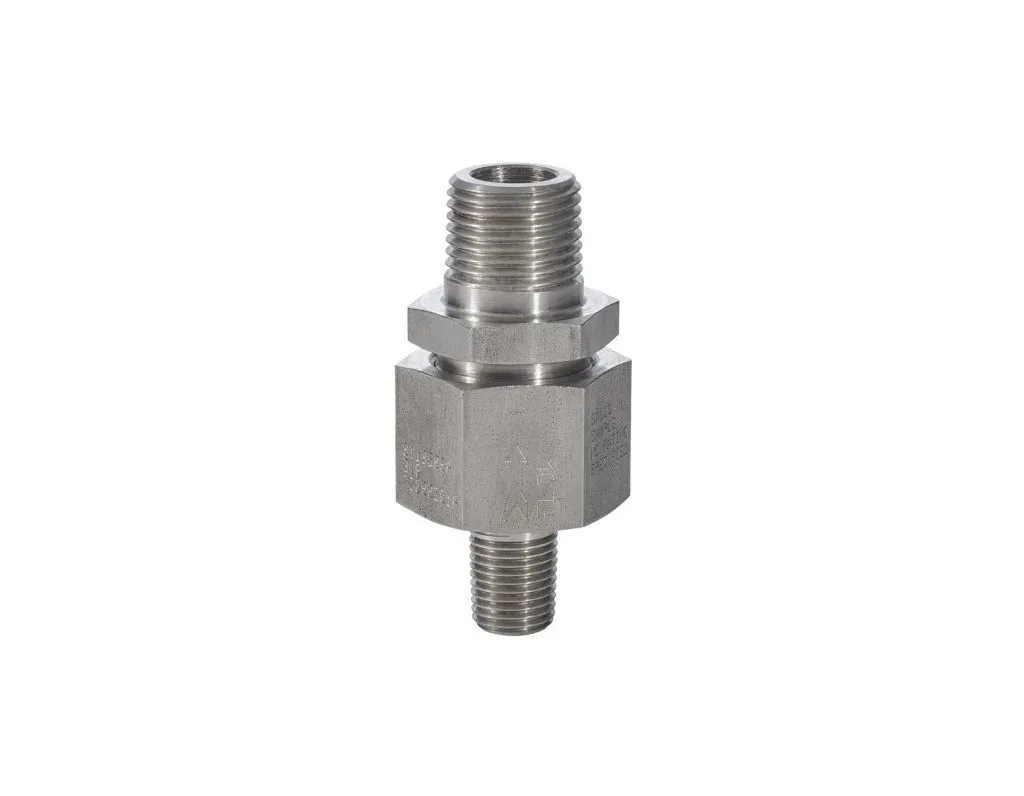

The screw-type rupture disc holder
The screw-type assembly is a reusable unit for use in systems with pressures up to 15,000 psig (1034 barg).
A standard, composite, or SRA rupture disc is supplied separately from the screw-type holder. After an overpressure condition occurs, replacement is done by disassembling the screw-type holder and replacing only the ruptured rupture disc.
Various pressure ratings, materials, and holder configurations are available to customize the screw-type assembly to your specific application.
The Tite-Seal assembly
The Tite-Seal assembly is a sealed, disposable unit for use in systems where pressures do not exceed 3,000 psig (207 barg).
The Tite-Seal assembly features a rupture disc sealed between brass fittings. After relieving an overpressure condition, replacement is easily done by replacing the entire assembly.
The Tite-Seal assembly can be supplied with a standard, composite, or SRA rupture disc to suit different applications.
Nominal Size Range: 0.25″ – 1″ (3mm - 25mm)
Burst Pressure Range: 30 psig – 15,000 psig (2 barg – 1034 barg)
Recommended Operating Ratio: 70 – 90% of the rupture disc's nominal (stamped) burst pressure
Seat Configuration: 30° seat or flat seat
Service: Liquid or gas
Compatible with BDI Alarm System?: No
ASME Code Symbol Stamp Available?: Yes
Materials not listed or shown may be available as a special design. Contact us for more information.
