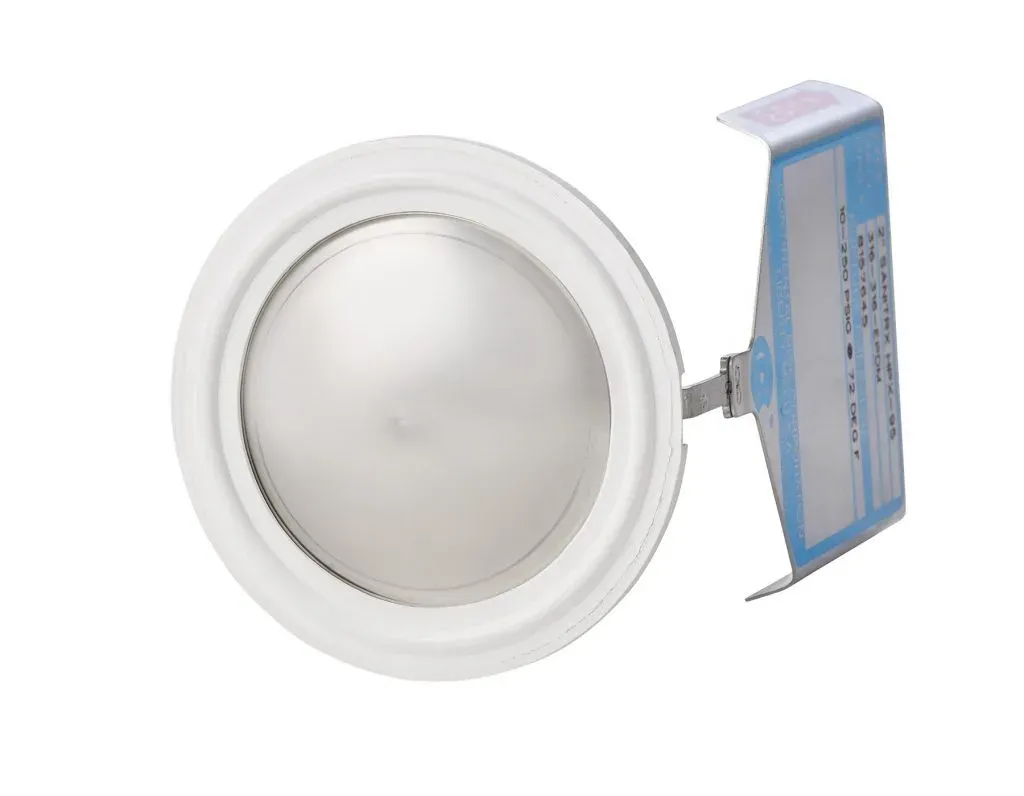

SANITRX HPX® Rupture Disc
We reply Monday to Friday, 9:00 a.m. to 6:00 p.m. (Mexico City time) · +52 55 2458 7374
Description
A semicircular slotted, reverse-acting rupture disc designed specifically for the pharmaceutical, biotechnology, and food and beverage industries.
SANITRX HPX® specifications
This is the core model of the SANITRX family: the SANITRX LPX covers lower pressures (gas only) and the SANITRX HPX® II covers higher pressures and sizes up to 4". It withstands cycling from full vacuum up to 95 % of marked pressure.
- Sizes: 1" to 3" (25 to 80 mm)
- Burst pressure: 10 to 250 psig (0.689 to 17.2 barg)
- Operating ratio: 90 % or 95 % of rated burst pressure
- Temperature: withstands 130 °C for steam sterilization
- Service: liquid or gas
- Materials: typically 316L; USP Class VI certified gaskets
- Connection: between standard sanitary ferrules, NovAseptic flanges or SANITRX fittings
- Standards: ASME BPE, 3A; SF1 internal finish (20 Ra µin)
Manufacturer data (Continental Disc Corporation).
Ideal for a wide range of sanitary and hygienic applications, SANITRX HPX rupture discs install between industry-standard sanitary ferrules, NovAseptic flanges or SANITRX fittings.
