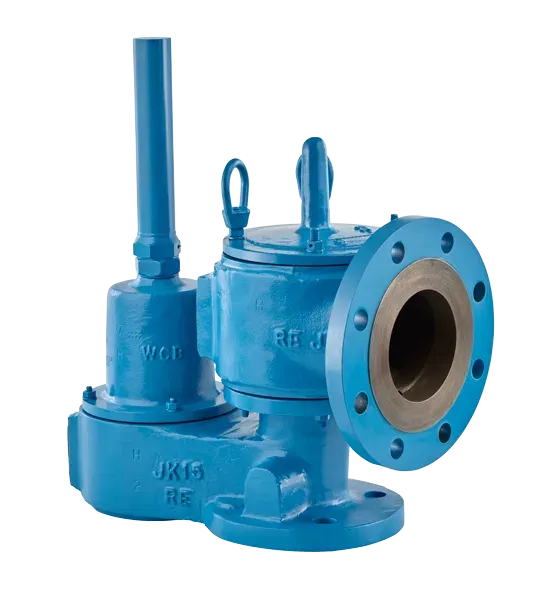

Pressure / Vacuum Relief Valve with Piped Discharge and Vacuum Spring MODEL 1222B
Pressure / Vacuum Relief Valve with Piped Discharge and Vacuum Spring MODEL 1222B
Pressure / Vacuum Relief Valve with Piped Discharge and Vacuum Spring MODEL 1222B Pressure / Vacuum Relief Valve with Piped Discharge and Vacuum Spring MODEL 1222B

Pressure / Vacuum Relief Valve with Piped Discharge and Vacuum Spring MODEL 1222B

Price on request
Request a quote

We reply Monday to Friday, 9:00 a.m. to 6:00 p.m. (Mexico City time) · +52 55 2458 7374

Description

Model 1222B is used for pressure and vacuum relief in applications where vapors must be piped away. Escaping vapors are channeled through a flanged outlet connection, helping to provide greater fire protection and safety.

How does the 1222B differ?

The 1220 series is the pipe-away version of the 1200 series: the outlet is flanged and one size larger than the inlet (from 2x3" to 12x14"). Its variants follow the same logic: 1220A (weight-loaded pressure and vacuum), 1221B (spring-loaded pressure), 1222B (spring-loaded vacuum) and 1223A (springs on pressure and vacuum).

  • Loading: spring-loaded vacuum, weight-loaded pressure (equivalent to the 1202B with pipe-away)
  • Vacuum setting: 1 to 12 psig (68.9 to 827 mbarg)
  • Sizes: 2" to 12"
  • Materials: aluminum, carbon steel, stainless steel or fiberglass; Buna-N, fluoropolymer or FKM diaphragms

Manufacturer data (Groth Corporation).

The flanged outlet connection allows escaping vapors to be piped away, rather than released directly to the atmosphere.

Peripheral and central seat guides ensure reliable, repeatable performance.

A wide seat and an air-cushion seal keep leakage low even long after the valve has entered service.

The self-draining housing body and drip rings protect seating surfaces from condensate and freezing, increasing operational reliability.

Fluoropolymer seat diaphragms are standard to minimize sticking caused by resinous vapors and atmospheric moisture.

Size: 2″ (DN50) to 12″ (DN300)

Material: Available in aluminum, carbon steel, stainless steel, fiberglass, and other materials

Pressure: 0.5 osig to 15 psig (2.15 mbarg to 1.03 barg)

Vacuum: 1 osig to 12 psig (68.9 mbarg to 827 mbarg)

Certification: ATEX and PED approval

  • Available drilling classes: 150# ANSI, PN10, PN16, JIS

  • Seat diaphragms: Buna-N, Fluoropolymer, FKM, and others

  • Steam jacket

  • Separator

×
×
