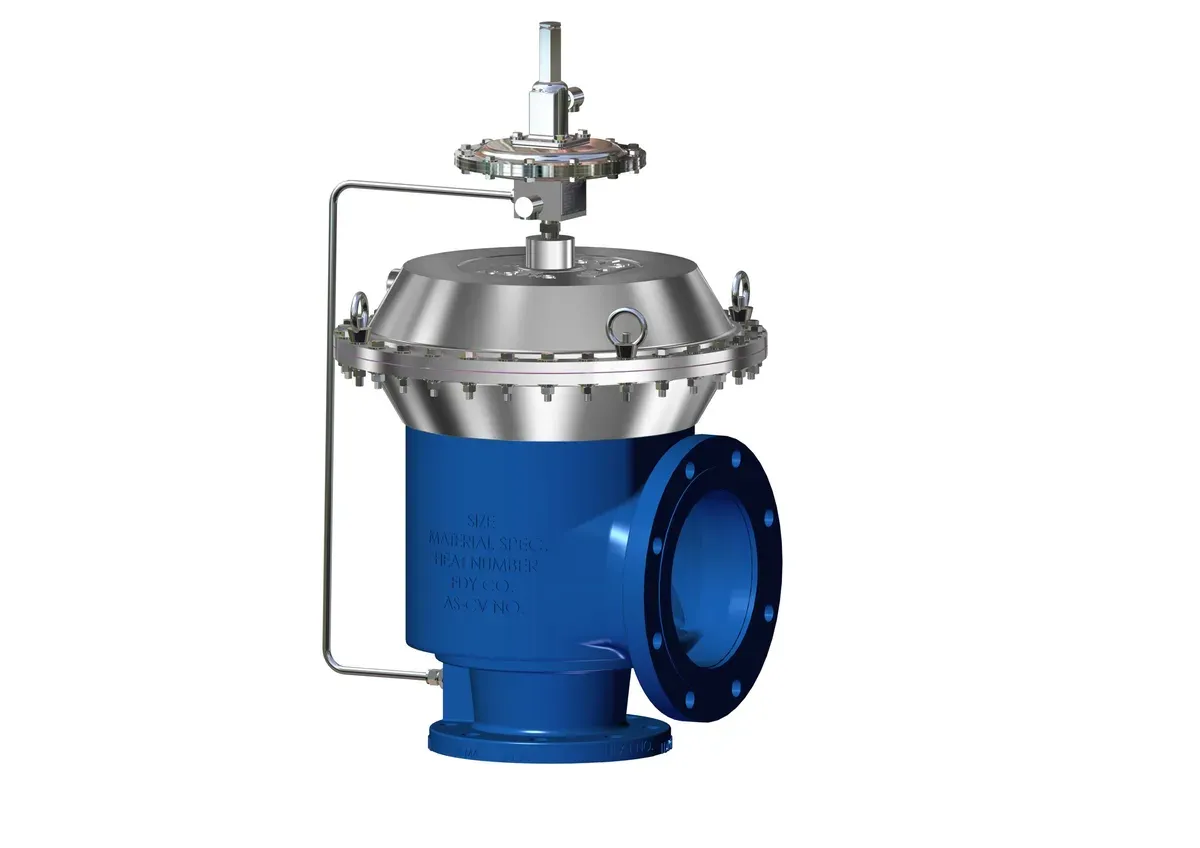

Pilot Relief Valve MODEL 14F-TP0
Pilot Relief Valve MODEL 14F-TP0
Pilot Relief Valve MODEL 14F-TP0 Pilot Relief Valve MODEL 14F-TP0

Pilot Relief Valve MODEL 14F-TP0

Price on request
Request a quote

We reply Monday to Friday, 9:00 a.m. to 6:00 p.m. (Mexico City time) · +52 55 2458 7374

Description

The Groth Models 14E and 14F Pilot-Operated Relief Valves are used to replace weight-loaded or spring-loaded valves in many applications, increasing efficiency and reducing evaporation losses. These valves offer several advantages compared to traditional valves. For example, process pressures can be closer to the set pressure than would be prudent and safe with a traditional valve. In addition, greater conservation is achieved due to minimal product loss, which in turn generates higher profits.

How does the 14F-TP0 differ?

In the 14E and 14F pilot models, the letter indicates the body: E vents freely to atmosphere and F has a pipe-away with an outlet one size larger (2x3" to 12x14"). The suffix indicates the function: TP0 relieves pressure only (no vacuum) and TPW adds a weight-loaded vacuum pallet. Catalog variants: 14E-TP0, 14F-TP0 and 14F-TPW. The pilot can be modulating or snap-acting.

  • Body: pipe-away (2x3" to 12x14")
  • Function: pressure only, pilot-operated
  • Pressure setting: 7.0 inWC to 15 psig (17.5 to 1034 mbar); 8.0 inWC minimum on 2"

Manufacturer data (Groth Corporation).

Easy, precise adjustments

Only the pilot needs to be adjusted

Lower profile and reduced weight compared to spring-operated models for high settings

Remote pilot sensing option allows the pilot to sense actual system pressure

Remote or manual blowdown option available

The main valve remains sealed until the set pressure is reached

Flow capacity available at 10% overpressure

Modulating action conserves product (available on most settings, consult factory)

Top entry allows the valve to be serviced without removing it from the mounting

Technical Details

• Size: 2” (50mm) through 10” (250mm)

• Body Material: Aluminum, Carbon Steel, Stainless Steel

• Pallet Material: Aluminum (Vacuum Only), Stainless Steel

• Diaphragm Material: Buna-N, Blue FKM or FEP

• Weight Material: Zinc-Plated Carbon Steel or Stainless Steel

• Bolting Class: 150# ASME, PN10, PN16

• Pressure settings: 7.0 InWC (17.5mbar), [8.0 inWC (19.9 mbar) for 2” sizes] to 15 psig (1034 mbar)

• Vacuum Settings: 0.80 InWC (2.0 mbar) to 1.5 psig (103mbar)

• Superior tightness, meeting API-2000 and ISO 4126 leak requirements

• PED and ATEX Certified

  • Pilot exhaust piped to discharge header

  • Field test connection

  • Manual blowdown

  • Remote sense pickup

  • Pilot supply filter

×
×
