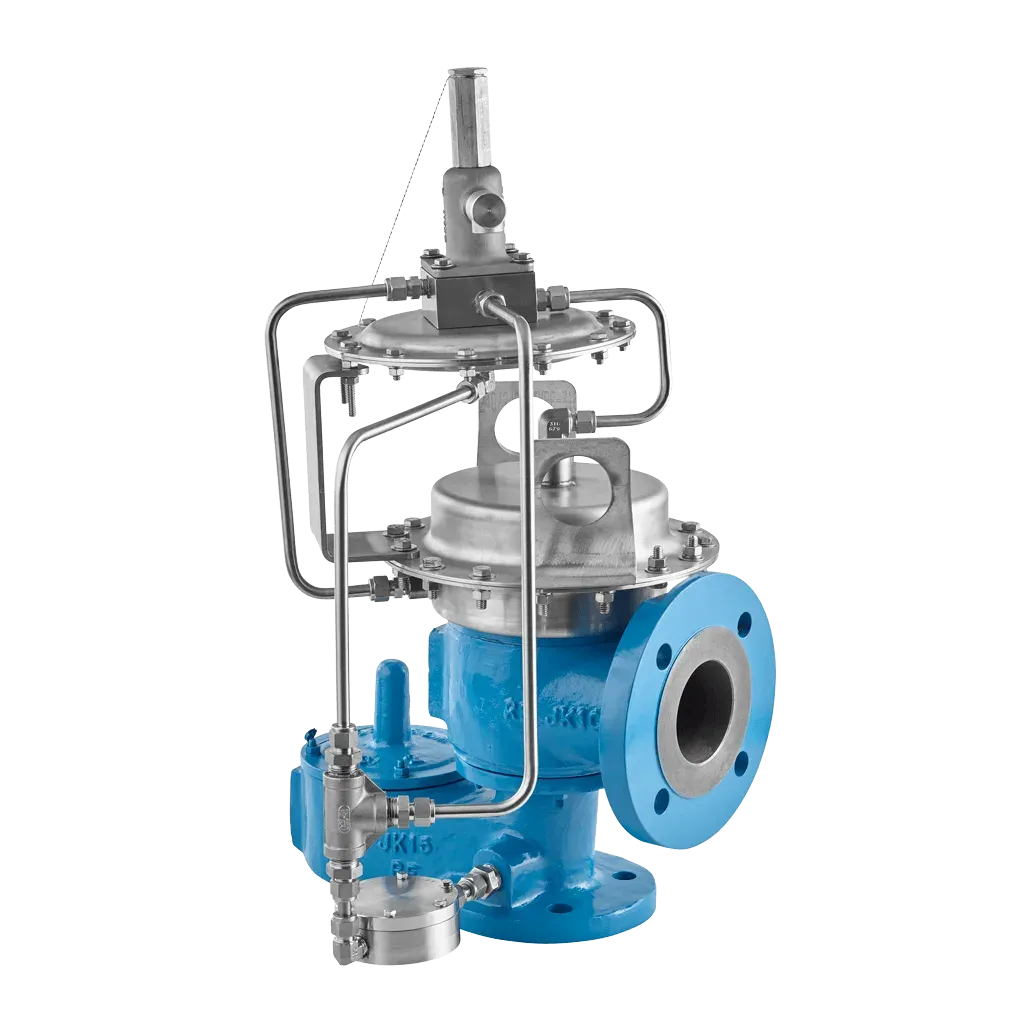

Pilot-Operated Relief Valve with Vacuum Breaker MODEL 1420
Pilot-Operated Relief Valve with Vacuum Breaker MODEL 1420
Pilot-Operated Relief Valve with Vacuum Breaker MODEL 1420 Pilot-Operated Relief Valve with Vacuum Breaker MODEL 1420

Pilot-Operated Relief Valve with Vacuum Breaker MODEL 1420

Price on request
Request a quote

We reply Monday to Friday, 9:00 a.m. to 6:00 p.m. (Mexico City time) · +52 55 2458 7374

Description

Groth 1400 Series pilot-operated relief valves are used to replace weight-loaded or spring-loaded valves in many applications, with the goal of increasing efficiency and reducing evaporation losses. These valves offer several advantages over traditional valves. For example, process pressures can be closer to the set pressure than would be considered prudent and safe with a traditional valve. In addition, greater conservation is achieved due to minimal product loss, which in turn generates increased profits.

How does the 1420 differ?

The 1400 Series of pilot-operated valves has four variants: 1400 (with vacuum breaker, vent to atmosphere), 1420 (with vacuum breaker and pipe-away), 1430 (pressure only, vent to atmosphere) and 1460 (pressure only, pipe-away, 2x3" to 12x14"). In all of them, the pilot can be modulating or snap-acting.

  • Function: pilot-operated pressure + vacuum breaker, with pipe-away
  • Pressure setting: 7.0 inWC to 15 psig
  • Vacuum setting: 0.5 oz/in² to 1 psig
  • Sizes: 2x3" to 12x14"

Manufacturer data (Groth Corporation).

  • Easy, precise adjustments

  • Only the pilot needs to be adjusted

  • Lower profile and weight than spring-operated models for high settings

  • The remote pilot sensing option allows the pilot to sense the actual system pressure

  • Remote or manual blowdown option available

  • The main valve remains closed until set pressure is reached

  • Full opening at 10% overpressure

  • Modulating action that conserves product

  • Soft seat that creates a tight seal to conserve product and minimize valve wear

  • Top entry that allows valve maintenance without removing it from the mounting

Size: From 2″ (DN 50) to 12″ (DN 300)

Material: Standard body materials are carbon steel, stainless steel and aluminum

Pressure: From 7.0* inWC to 15 psig *. For settings below 7 inWC, please contact us.

Vacuum: From 0.87 inWC to 1 psig (0.5 osig to 16 osig)

Certification: ATEX and PED approval

150# ANSI, PN10, PN16, JIS drilling classes available

Pilot exhaust piped to discharge header

Field test connection

Manual blow down

Remote sense pickup

Pilot supply filter

×
×
