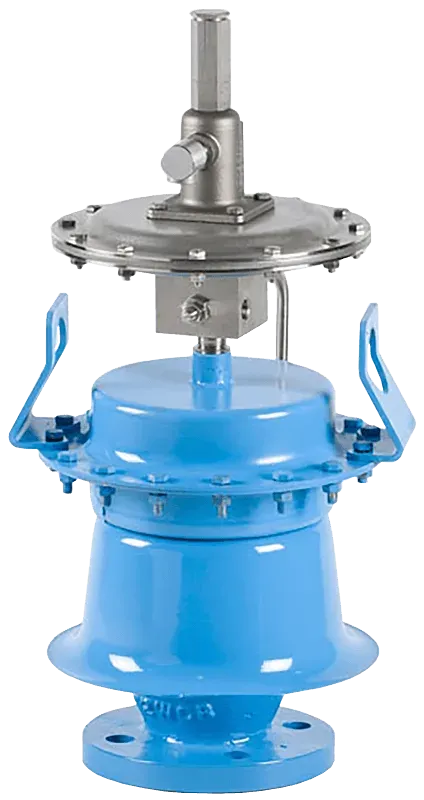

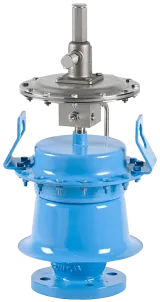

Pilot-Operated Relief Valve MODEL 1430
We reply Monday to Friday, 9:00 a.m. to 6:00 p.m. (Mexico City time) · +52 55 2458 7374
Description
Groth 1400 Series pilot-operated relief valves are used to replace weight-loaded or spring-loaded valves in many applications, with the goal of increasing efficiency and reducing evaporation losses. These valves offer several advantages compared to traditional valves. For example, process pressures can be closer to the set pressure than would be considered prudent and safe with a traditional valve. In addition, greater conservation is achieved due to minimal product loss, which in turn generates increased profits.
How does the 1430 differ?
The 1400 Series of pilot-operated valves has four variants: 1400 (with vacuum breaker, vent to atmosphere), 1420 (with vacuum breaker and pipe-away), 1430 (pressure only, vent to atmosphere) and 1460 (pressure only, pipe-away, 2x3" to 12x14"). In all of them, the pilot can be modulating or snap-acting.
- Function: pressure only, vent to atmosphere
- Pressure setting: 7.0 inWC to 15 psig
- Sizes: 2" to 12"
Manufacturer data (Groth Corporation).
The Model 1430 is similar to the 1400, but without a vacuum breaker.
Easy, precise adjustments
Only the pilot needs to be adjusted
Lower profile and weight than spring-operated models for high settings
The remote pilot sensing option allows the pilot to sense the actual system pressure
Remote or manual blowdown available
The main valve remains closed until set pressure is reached
Full opening at 10% overpressure
Modulating action that conserves product
Soft seat that creates a tight seal to conserve product and minimize valve wear
Top entry that allows valve maintenance without removing it from the mounting
Size: From 2″ (DN 50) to 12″ (DN 300)
Material: Standard body materials are carbon steel, stainless steel and aluminum
Pressure: From 7.0* inWC to 15 psig *. For settings below 7 inWC, please contact us.
Certification: ATEX and PED approval
Available drilling classes: 150# ANSI, PN10, PN16, JIS
Pilot exhaust piped to discharge header
Field test connection
Manual blowdown
Remote sense pickup
Pilot supply filter
