Description
A solid-metal, tension-acting rupture disc that threads directly into a threaded port, providing precise overpressure protection with simple installation.
Protect equipment, personnel and the environment with the WMP single-use threaded assembly. The WMP is ideal for applications that discharge to atmosphere at the rupture disc location.

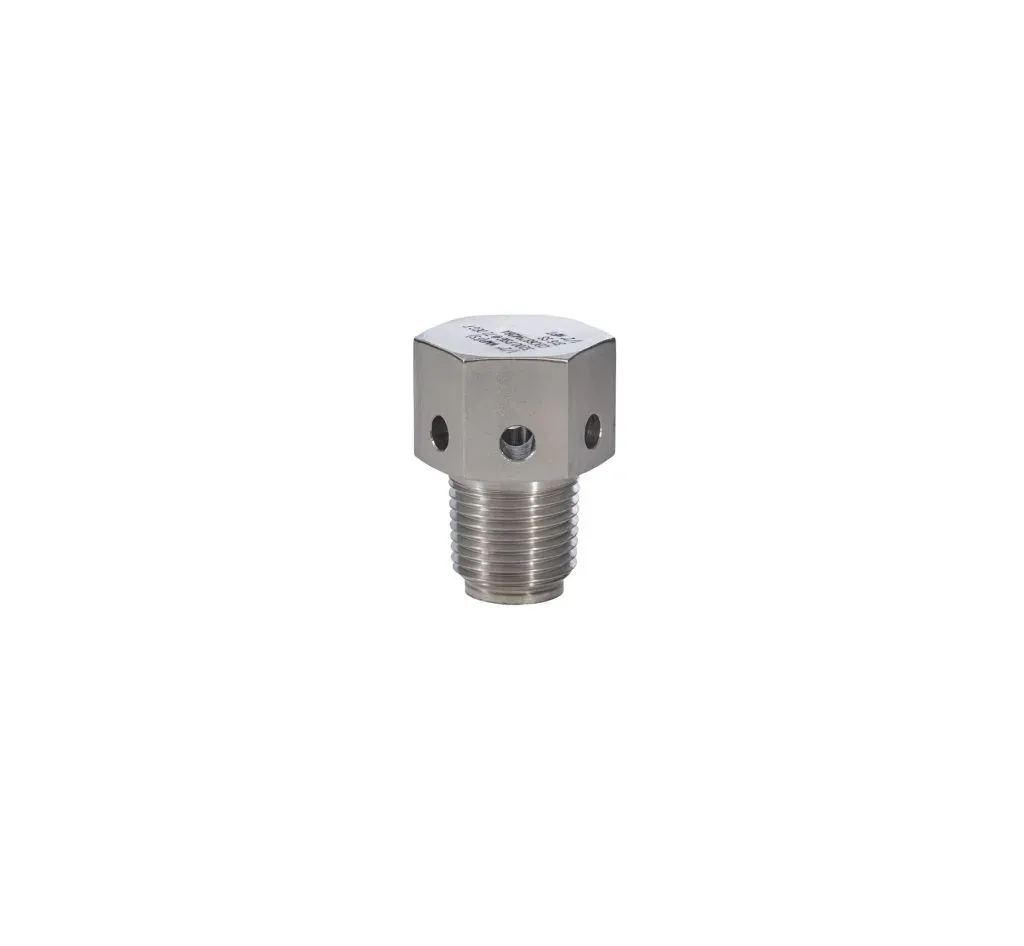

Protect equipment, personnel and the environment with the single-use, threaded WMP Welded Muffled Plug rupture disc assembly. The WMP is ideal for applications that discharge to atmosphere at the rupture disc location.
The WMP is a solid-metal, tension-acting rupture disc that threads directly into a threaded port, providing precise overpressure protection with minimal installation time.
The rupture disc is welded to a threaded outlet body and an inlet ring, creating a leak-tight seal between the rupture disc, the outlet body and the inlet ring. Six holes in the hex head of the outlet body reduce reaction forces after the rupture disc has activated.
We supply the versatile WMP in a wide range of burst pressures and temperatures for applications in dozens of industries, including:
Hydraulic Systems
Actuators
Accumulators
Pumps
Air conditioning systems
Brake systems
High-pressure water cleaning systems
Pneumatic Systems
Actuators
Gas cylinders for sample bottles
Test fixtures
Air conditioning systems
Gauge panel protection
Overpressure protection
Nominal Size Range: 0.125″ – 1″ (3 mm – 25 mm)
Burst Pressure Range: 300 psig – 15,000 psig (20.7 barg – 1034 barg)
Maximum Recommended Operating Ratio: 70% of the rupture disc's nominal (stamped) burst pressure.
Seat Configuration: Flat seat
Service: Liquid or gas
Compatible with BDI Alarm System?: No
ASME Code Symbol Stamp Available?: No
