Description

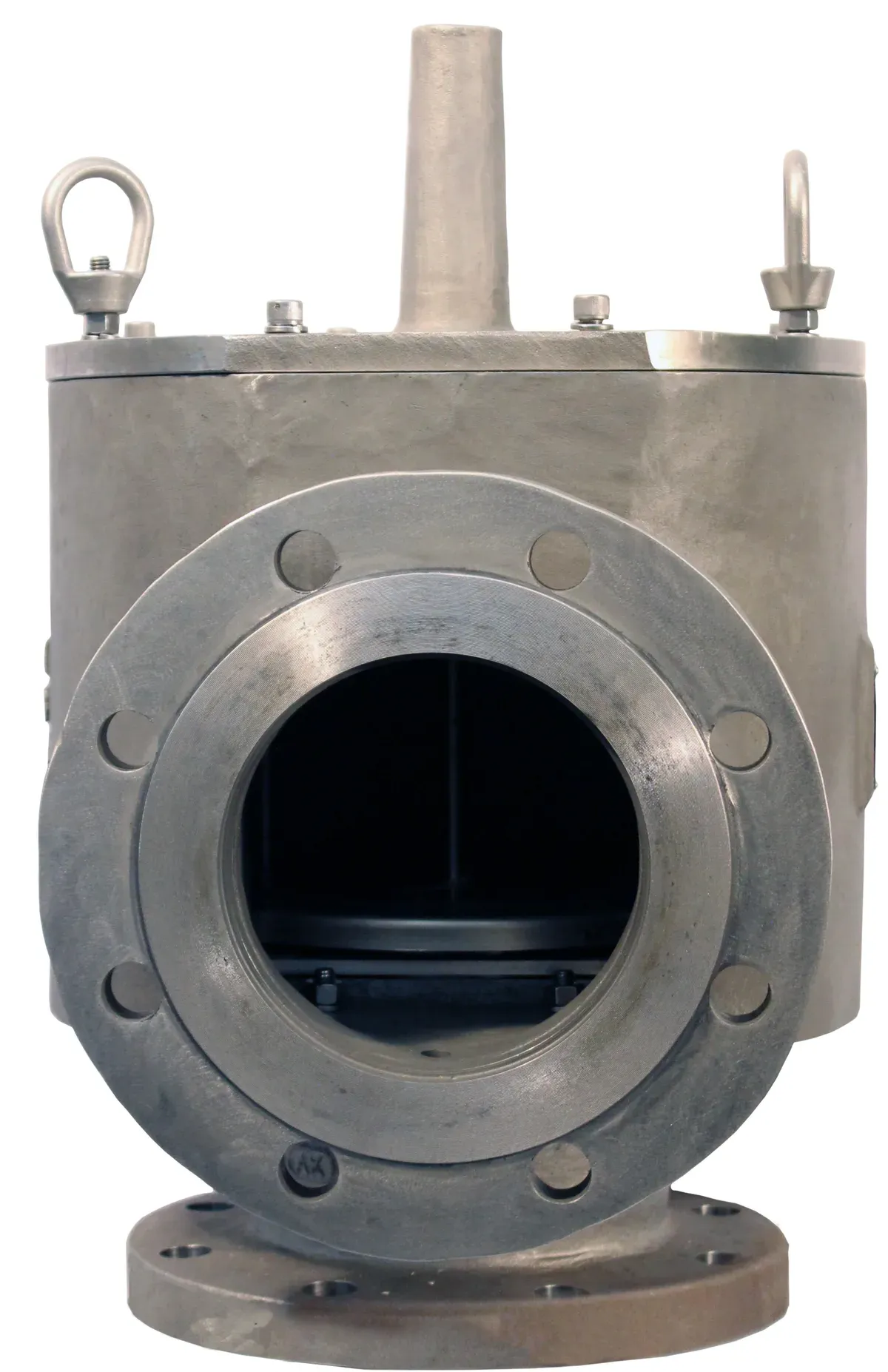

Groth Corporation's Model 17F-TW0-0 weight-loaded pressure relief valve is designed for applications where additional pressure relief is required. Groth 17F Series relief valves are designed with inlet and outlet flanges of the same size to reduce installation costs by using smaller piping on the outlet. Model 17F-TW0-0 valves are intended for systems that require pressure relief only.
• Product leakage and fugitive emissions are reduced thanks to ultra-tight sealing.
• Higher flow capacity to protect against excessive pressure buildup.
• Peripheral and central seat guides ensure reliable, repeatable performance.
• Designed for easy maintenance, thereby reducing downtime and operating costs.
Technical Details
• Size: 2” (50 mm) to 12” (300 mm)
• Body material: Aluminum (non-sparking), Carbon Steel, Stainless Steel
• Pallet material: Stainless Steel
• Diaphragm materials: Buna-N, Blue FKM, or FEP
• Weight material: Stainless Steel, Zinc-Coated Carbon Steel
• Bolt class: 150# ASME, PN10, PN16, JIS drilling classes available
• Pressure setting: 0.86 inWC (2.15 mbarg) to 41.5 inWC (103 mbarg)
• Top seal, meets API-2000 leakage requirements
• PED and ATEX certifications
