Description

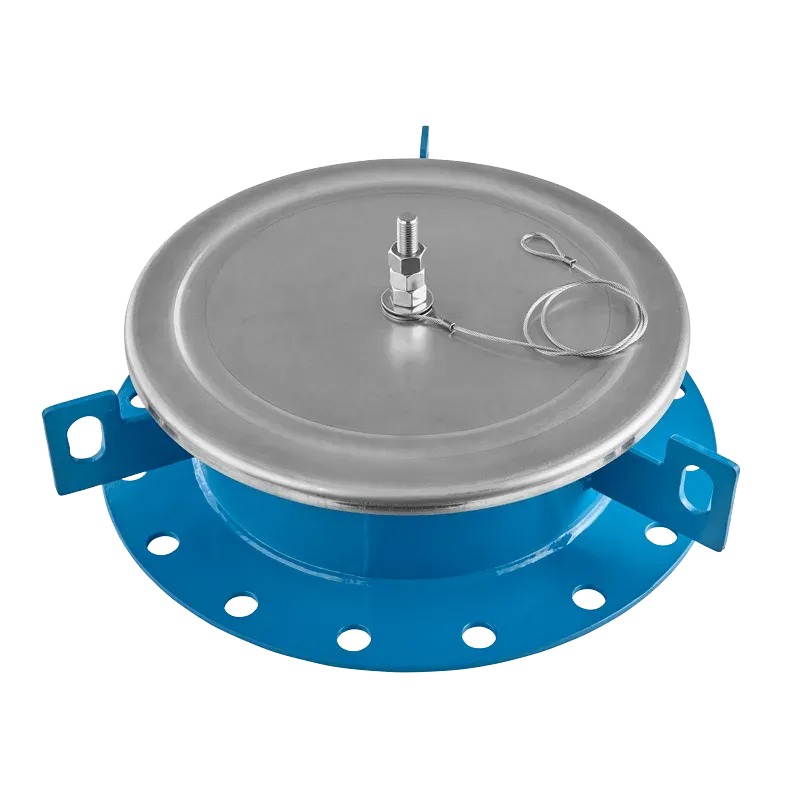

The Groth Model 2000A is designed to provide additional emergency relief capacity beyond that offered by the tank's normal operating pressure relief valve. This valve protects the tank against rupture or explosion that could result from excessive internal pressure caused by a fire. Removable stops that limit cover lift can be included.
Grounding cable connects the head and the flange
Air-cushioned pallet
Peripheral guide
Size: 16″ (DN 400), 20″ (DN 500) and 24″ (DN 600)
Material: Available in carbon steel, stainless steel, fiberglass and other materials
Pressure: From 1.5 oz/in² to 16 osig (6.46 mbarg to 68.9 mbarg)
Certification: ATEX approval
Manufacturing: Produced in an ISO 9001-certified manufacturing facility
Steam jacket
Buna-N, fluoropolymer, FKM
ANSI 150# and API 650 drilling classes
