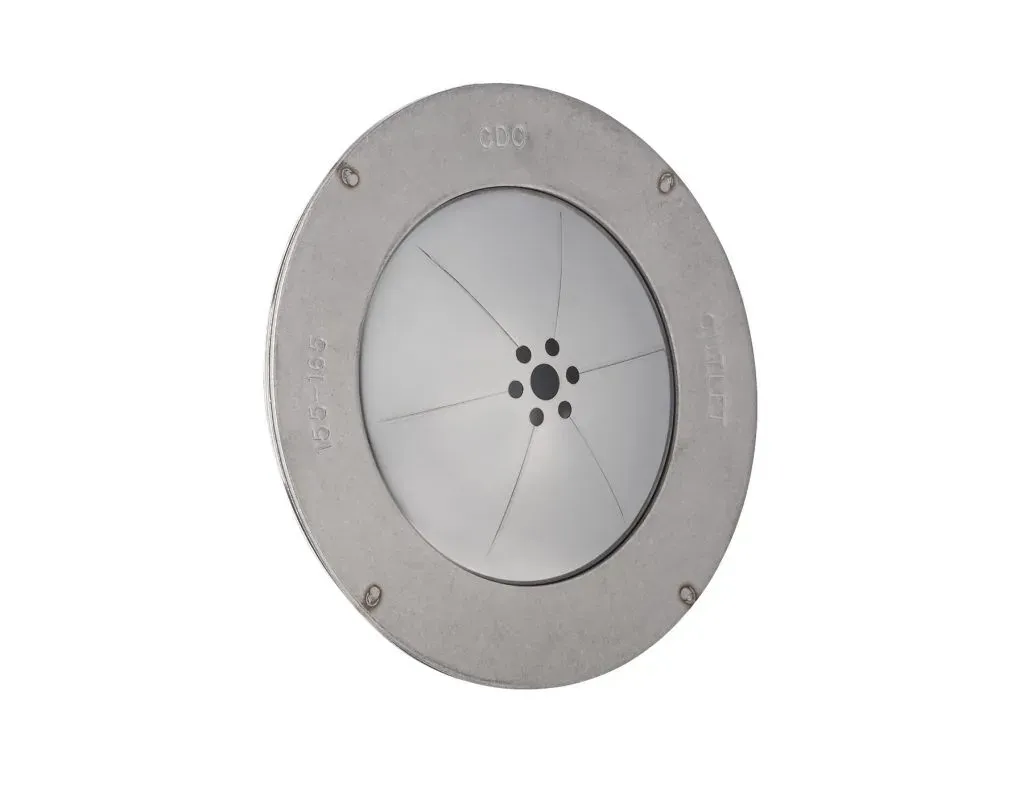

TANKSERT Rupture Disc

A composite rupture disc that fits standard threaded or bolted safety vent assemblies on transport vehicles.

We offer a variety of rupture disc products designed to protect railcars, intermodal tank containers, tank trucks, road tankers and almost any other vessel that transports liquid or gaseous products.

Liquid and gas transport operations need the TANKSERT rupture disc: a composite rupture disc that protects railcars, road tankers and other vessels from hazardous overpressure conditions.

The TANKSERT rupture disc is ideal for installation in standard threaded or bolted safety vent assemblies on transport vehicles.

The TANKSERT rupture disc is a composite type with a flat-seat sealing configuration. It fits both threaded and bolted safety vent assemblies. It features:

Self-aligning vacuum support to ensure proper positioning in the safety vent assembly.

Vacuum support to prevent seal damage in the event of a pressure surge during transit or unloading.

Full vacuum capability.

A non-fragmenting design.

Fluoropolymer inlet gaskets for a leak-tight seal.

Optional #14 or #20 bee screens to protect openings from insects or airborne particles after a disc ruptures.

Overpressure protection, regardless of the vessel.

We offer a variety of rupture disc products designed to protect railcars, intermodal tank containers, tank trucks, road tankers and almost any other vessel that transports liquid or gaseous products. If the TANKSERT is not what you are looking for, we recommend the ICON rupture disc.

Nominal Size Range: 2″ (50 mm)

Burst Pressure Range: 25 psig – 165 psig (1.72 barg – 11.4 barg)

Maximum Recommended Operating Ratio: 80% of the rupture disc's nominal (marked) burst pressure

Seat Configuration: Flat seat

Service: Liquid or gas

Compatible with BDI Alarm System?: No

ASME Code Symbol Stamp Available?: No

Materials not listed or shown may be available through special design. Contact us for more information.
