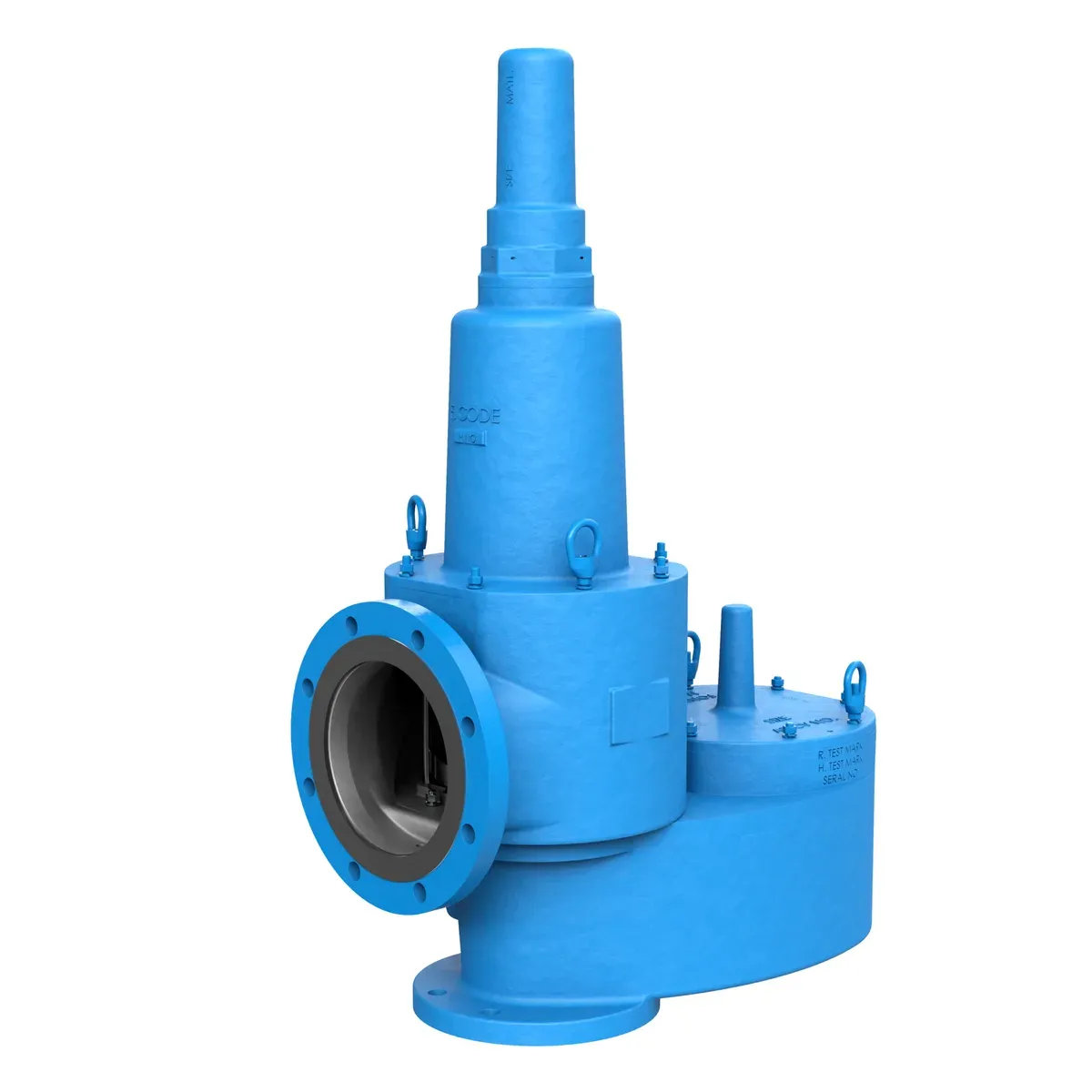

Spring-Loaded Pressure / Vacuum Relief Valve – with Drain MODEL 12F-TSW

The spring-loaded design of the Groth Model 12F-TSW pressure/vacuum relief valves was created to exceed industry needs. Extensive research and development have produced a product that achieves superior sealing performance and industry-leading flow rates, while allowing customers to achieve the required flow with a potentially smaller valve. The pressure/vacuum relief valve is designed to protect your tank from damage caused by overpressure or excessive vacuum. Costly evaporative product losses due to normal tank "breathing" are greatly reduced. Models 12E-TSW and 12F-TSW are top-sealing valves developed to minimize fugitive emissions while providing greater protection and safety for tank equipment and on-site personnel.

Technical Details

• Sizes: 2” (DN 50) to 12” (DN 300)

• Pressure setting: 1 psig to 15 psig

• Vacuum setting: 0.464 osig (2 mbarg) to 24 osig

• Material: Aluminum, Carbon Steel, Stainless Steel, special materials available upon request

Features

• Modular construction

• Air-cushioned seat

• High-performance fluoropolymer diaphragms

• Self-cleaning housing body and drip rings

• Peripheral guide and central stabilization system for alignment

• PED and ATEX Certified

Options
• Buna-N, FKM
• Steam-jacketed valve
