Description

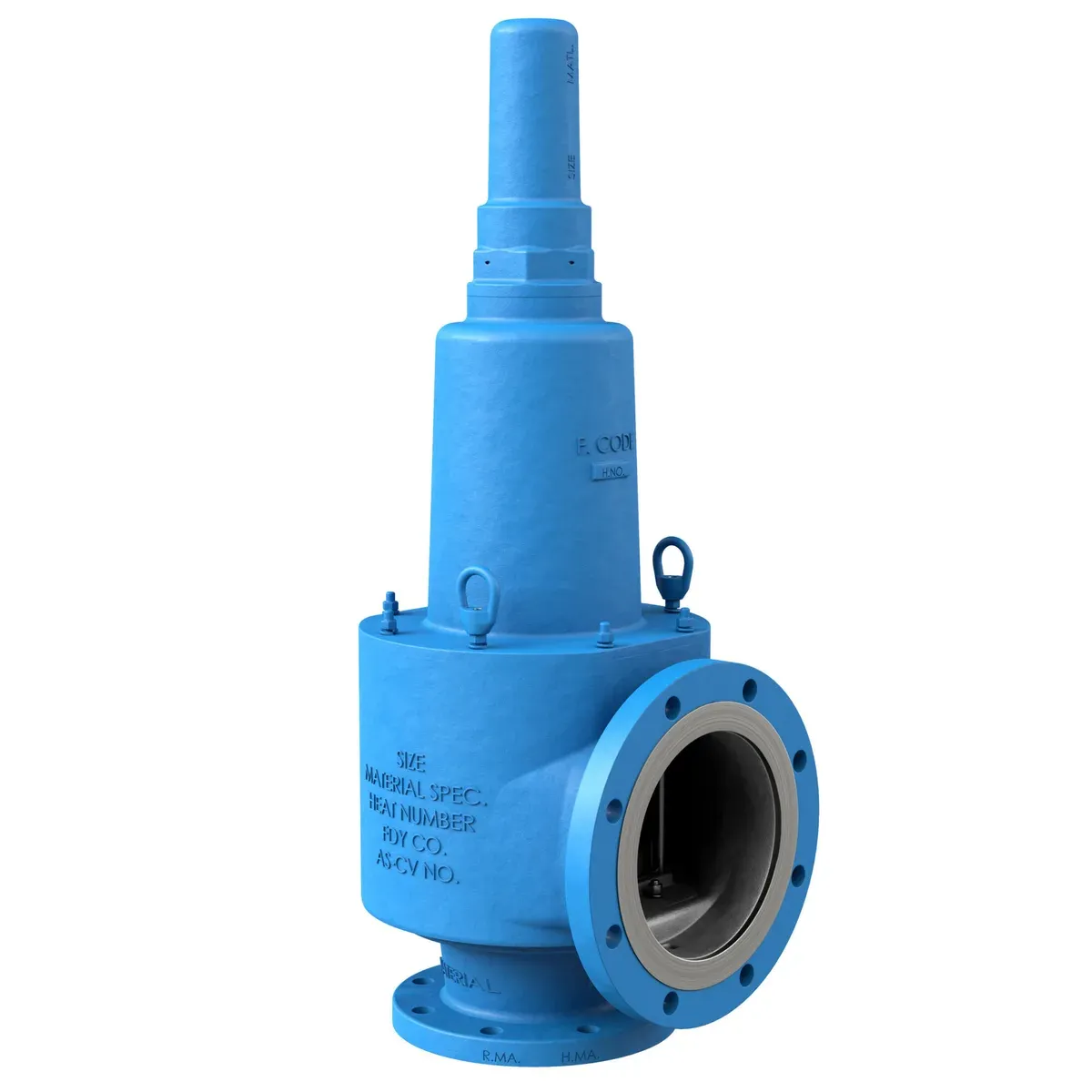

The spring-loaded design of the Groth Model 12F-TS0 pressure relief valve protects tanks from damage caused by overpressure. Costly product evaporation losses due to normal tank "breathing" are greatly reduced. Because Series 12 products retain toxic vapors, atmospheric contamination is minimized, helping to provide greater fire protection and safety.
Technical details
• Sizes: 2” (DN 50) to 12” (DN 300)
• Pressure settings: 1 psig to 15 psig
• Material: Aluminum, Carbon Steel, Stainless Steel, special materials available upon request
Features
• Modular construction
• Air-cushioned seat
• High-performance fluoropolymer diaphragms
• Self-draining housing body and drip rings
• Peripheral guide and central stabilization system for alignment
• PED and ATEX certified
Options
• Buna-N, FKM
• Steam-jacketed valve
