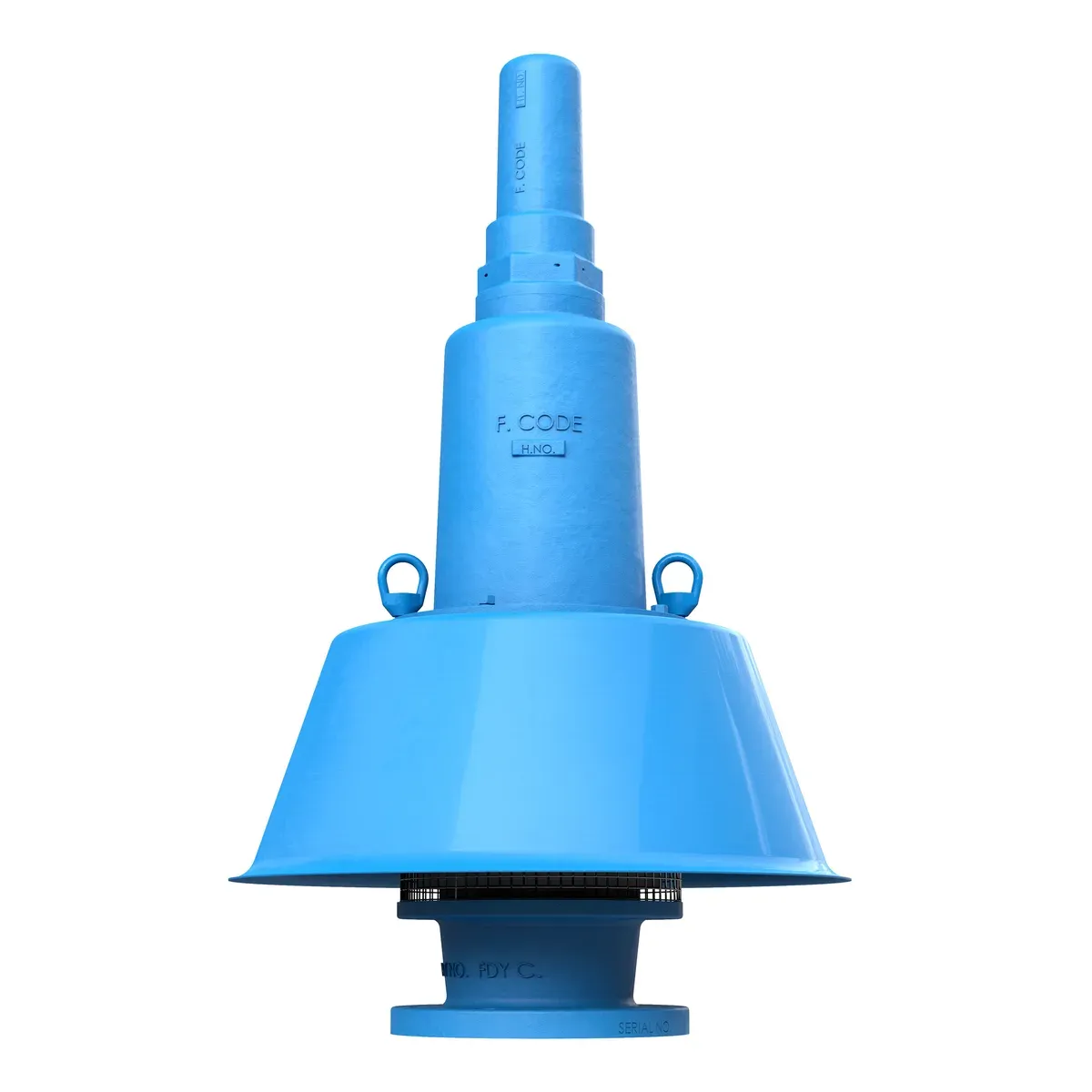

Spring-Loaded Pressure Relief Valve – Atmospheric Venting MODEL 23E-TS0

The spring-loaded design of the Groth Model 23E-TS0 PVRV protects tanks against damage caused by overpressure. Costly product evaporation losses due to normal tank "breathing" are significantly reduced. Since Series 12 products retain toxic vapors, atmospheric contamination is minimized, contributing to greater fire protection and safety.

Technical details

• Sizes: 2” (DN 50) to 12” (DN 300)

• Pressure settings: 1 psig to 15 psig

• Material: Aluminum, Carbon Steel, Stainless Steel, special materials available upon request

Features

• Modular construction

• Air-cushioned seat

• High-performance fluoropolymer diaphragms

• Self-cleaning housing body and drip rings

• Peripheral guide and central stabilization system for alignment

• Buna-N, FKM
• Steam-jacketed valve
