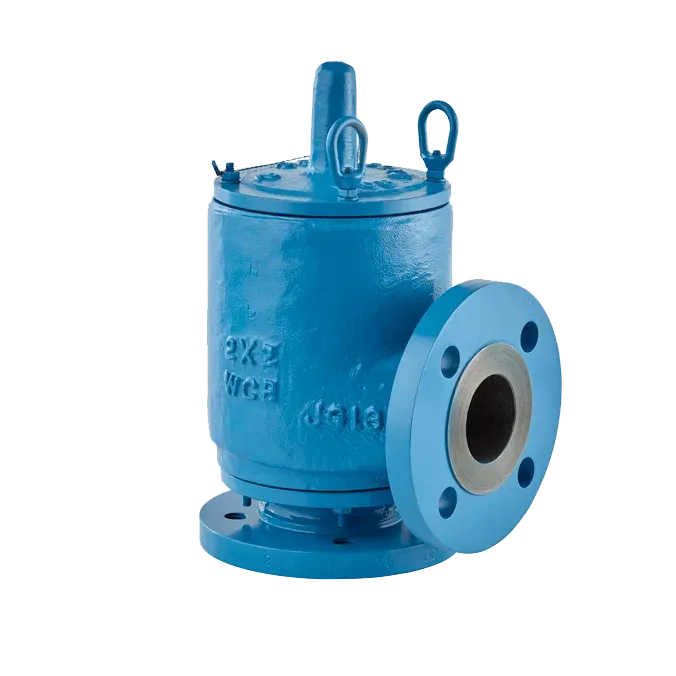

Pressure Relief Valve with Pipe-Away Feature and Same-Size Inlet and Outlet, MODEL 1760A
Pressure Relief Valve with Pipe-Away Feature and Same-Size Inlet and Outlet, MODEL 1760A
Pressure Relief Valve with Pipe-Away Feature and Same-Size Inlet and Outlet, MODEL 1760A Pressure Relief Valve with Pipe-Away Feature and Same-Size Inlet and Outlet, MODEL 1760A

Pressure Relief Valve with Pipe-Away Feature and Same-Size Inlet and Outlet, MODEL 1760A

Price on request
Request a quote

We reply Monday to Friday, 9:00 a.m. to 6:00 p.m. (Mexico City time) · +52 55 2458 7374

Description

Groth Series 1700 relief valves are designed with same-size inlet and outlet flanges to reduce installation costs by allowing the use of smaller piping on the discharge side. Model 1760A valves are designed for systems that require pressure relief only.

How does the 1760A differ?

The 1700 series has flanged inlet and outlet of the same size (2", 3" and 4") with pipe-away: the 1720A relieves pressure and vacuum; the 1760A relieves pressure only.

  • Function: pressure only
  • Sizes: 2", 3" and 4"
  • Materials: carbon steel, stainless steel or fiberglass body; 316 SS seat and pallet

Manufacturer data (Groth Corporation).

Air-cushioned seats

Central and peripheral pallet guiding

Self-draining body

Fluoropolymer seat diaphragms that minimize sticking caused by resinous vapors and atmospheric moisture

Self-draining housing body and drip rings protect seating surfaces against condensation and freezing

The design prevents pressure or vacuum buildup caused by blockages or obstructions in the valve.

Sizes: 2” (DN50), 3” (DN75) and 4” (DN100)

Materials: Carbon steel, stainless steel or fiberglass

Seat and pallet materials: 316 stainless steel

Same-size inlet and outlet connections

Manufactured in an ISO 9001-certified production facility

Higher set pressures (in weight-loaded configuration) than standard pipe-away valves

PED and ATEX certification

  • Seat diaphragm options: Buna-N, FKM and other materials

  • Stainless steel weights

×
×
