Description

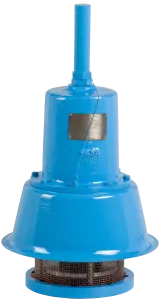

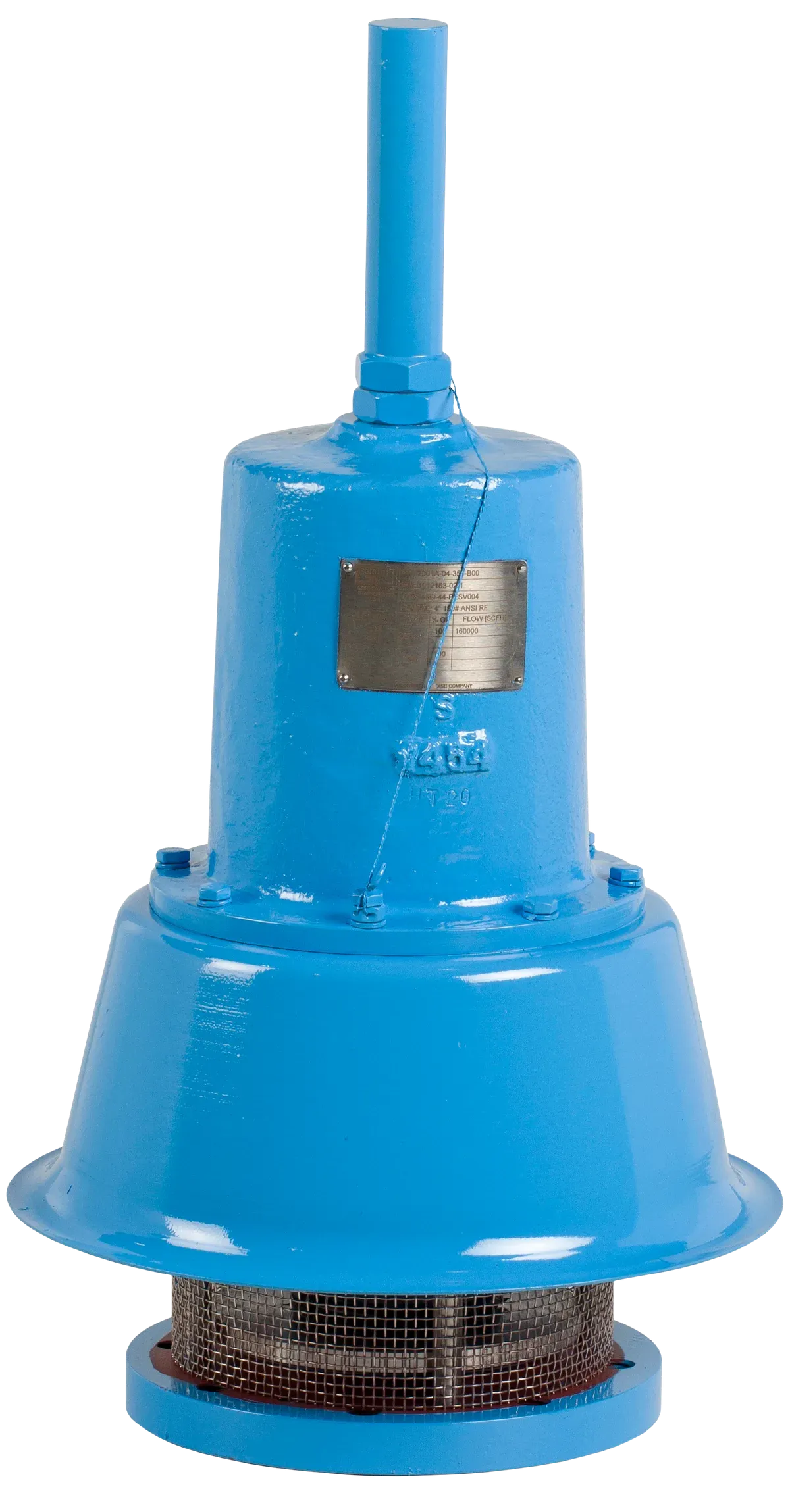

The Groth Model 2301A Emergency Relief Valve is designed to vent to atmosphere in emergencies, providing relief capacity greater than that offered by a standard operating valve used on low-pressure tanks, piping, and vessels. Emergency relief valves protect against excessive internal pressures that could cause damage to the tank.
The Model 2301A is built entirely from corrosion-resistant materials. The special self-closing fluoropolymer "air-cushioned" pallet, together with a central stabilizing stem and peripheral guides, ensures uniform seating and alignment. High-performance fluoropolymer seat diaphragms are standard to minimize sticking caused by resinous vapors and atmospheric moisture.
The guides support a molded protective hood that covers and protects the entire valve structure. As additional protection against the entry of foreign objects, a wire mesh surrounds the valve beneath the protective hood.
Can be used for emergency relief on smaller tanks
Peripheral and central seat guides ensure reliable, repeatable performance
A wide seat and an air-cushion seal keep leakage low even long after the valve has entered service
The self-draining housing body and drip rings protect the seating surfaces from condensate and freezing, increasing operational reliability
Fluoropolymer seat diaphragms are standard to minimize sticking caused by resinous vapors and atmospheric moisture
Size: 2″ (DN 50) to 12″ (DN 300) with flange sizes
Material: Available in aluminum, carbon steel, stainless steel, and other materials
Pressure: 0.5 oz/in² to 15 psig (2.15 mbarg to 1.03 barg)
Certification: ATEX and PED approval
Available drilling classes: 150# ANSI, PN10, PN16, JIS
Seat diaphragms: Buna-N, Fluoropolymer, FKM, and others
