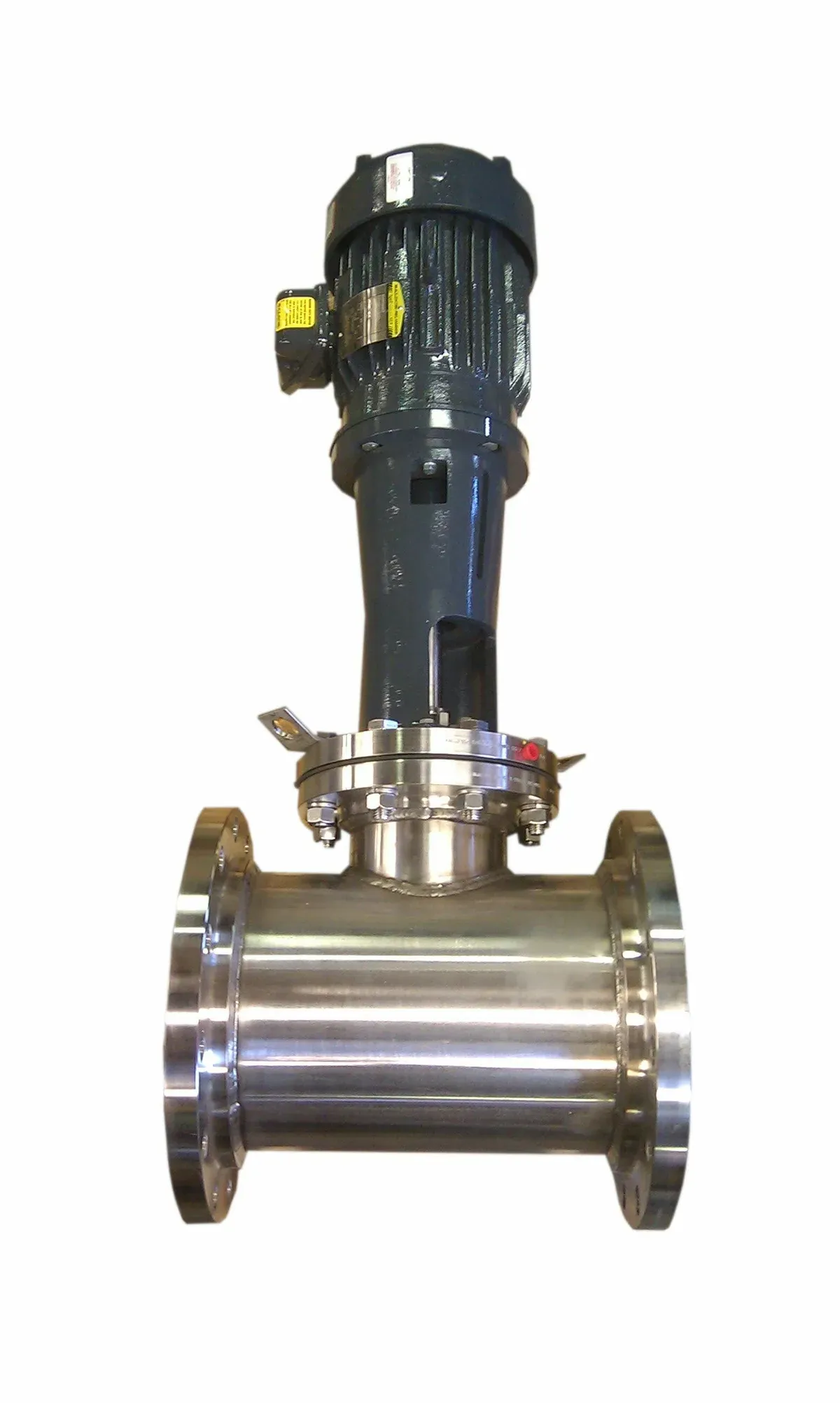

Pipeline Mixers

In a UET Mixers Inline Mixer, fluids enter a high-shear zone where they undergo intense mixing. These mixers are designed for continuous processes that require more shear than a static mixer can provide.

Mechanical Inline Mixers can be used to blend miscible fluids or disperse immiscible fluids. Inline Mixers are available in a wide range of configurations and materials, and can be mounted at any angle to meet process requirements.

Rated power: Up to 20 HP

Line size: Unlimited

Mounting: ANSI flanged ends

Speed range: 350 rpm to 3600 rpm

Motor: NEMA C-face, TEFC or XP

Impeller: Axial or radial

Viscosities: Up to 10,000 cPs

Pressure: Up to 300 psig
