Description
This cast stainless steel clamp, secured with four bolts, ensures a reliable hold for fittings and system components.
Secure your vessel and piping connections with the highly durable MBC multi-bolt sanitary closure, trusted by the pharmaceutical, biotechnology, food, beverage, and fine chemical industries worldwide. This robust clamp provides maximum connection integrity and works seamlessly with the SANITRX rupture disc family.
Secure your vessel and piping connections with the highly durable MBC multi-bolt sanitary closure, trusted by the pharmaceutical, biotechnology, food, beverage, and fine chemical industries worldwide.

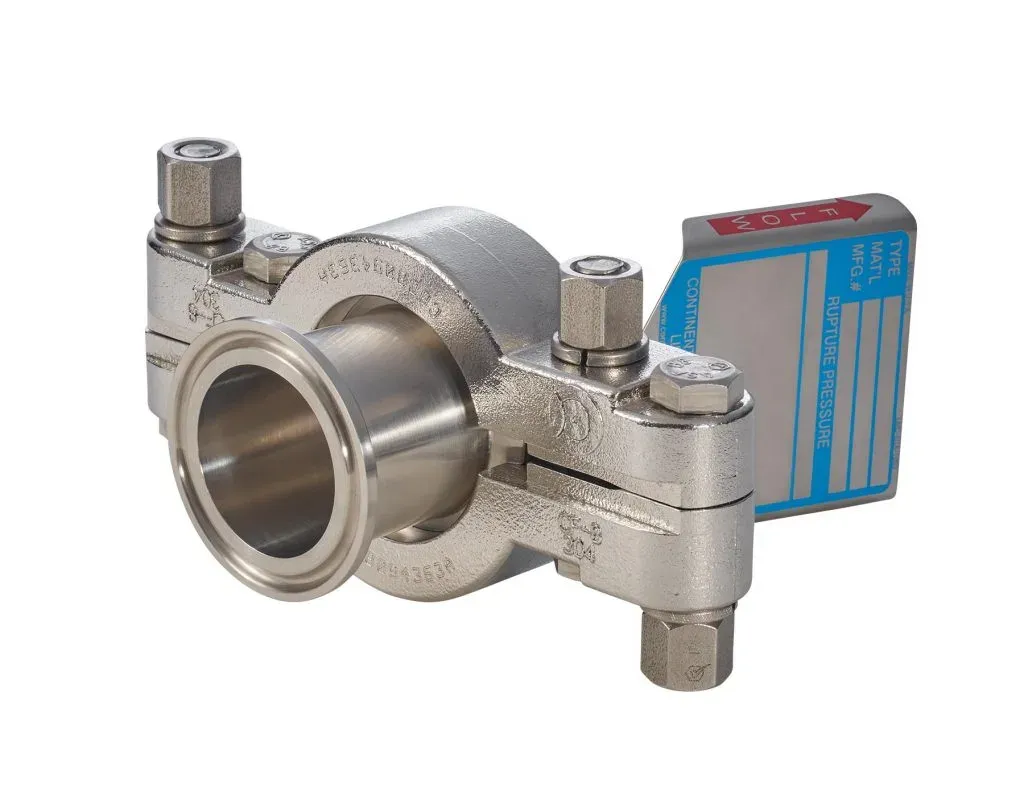

The MBC features a two-piece cast stainless steel body, secured with four stainless steel bolts. This robust clamp offers maximum connection integrity, providing a reliable and secure hold for fittings and system components.
The MBC is designed to work seamlessly with the SANITRX rupture disc family.
The MBC's opposing multi-bolt pattern uses four bolts, ensuring reliable performance and protecting your system and personnel from potential harm resulting from the failure of one- or two-bolt clamps.
The MBC can be used in general sanitary installations and in high-pressure or high-temperature applications, although pressure and temperature maximums are limited by the capabilities of standard gaskets and fittings.
Additional features include:
Solid cast stainless steel body with multi-bolt pattern for greater durability and performance under higher pressures and temperatures.
Corrosion-resistant 304 stainless steel bolts, nuts, and lock washers.
Available in sizes of 1½”, 2”, 3”, and 4”.
Depending on the size and the limitations of the mating components, the clamp can be installed in systems operating at pressures up to 1,500 psig (103 barg) or at temperatures up to 450 ºF.
Nominal Size Range: 1.5″ – 4″ (40 mm – 100 mm)
Burst Pressure Range: N/A
Recommended Operating Ratio: N/A
Service: N/A
Compatible with BDI Alarm System?: Yes
ASME Code Stamp Available?: N/A
