Description

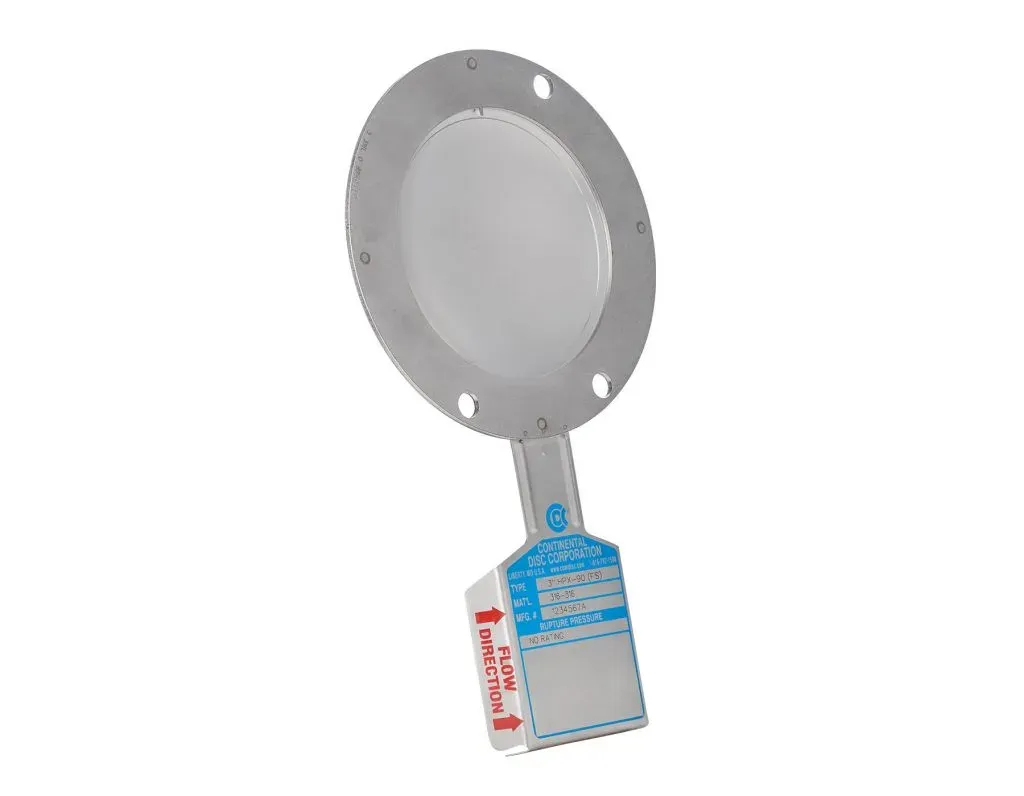

A semicircular, scored, reverse-acting rupture disc, ideal for liquid, gas, or vapor applications.
The HPX is designed for a long and reliable service life, even at the high operating-to-burst pressure ratios of today's process industries. Advanced manufacturing processes and optimal material thickness ensure full openings and precise burst ratings for a perfect rupture every time.
Withstand overpressure with the HPX reverse-acting rupture disc: your most versatile and cost-effective weapon in the fight against overpressure.
Designed to fit almost any overpressure protection application, the HPX rupture disc has demonstrated performance of more than 5 million cycles, operating at up to 95% of burst pressure, making it the best in the industry and the best choice for your operation. It is also part of a broader line of rupture discs that have been tested again and again.
Nominal Size Range: 1″ – 12″ (25 mm – 300 mm)
Burst Pressure Range: 10 psig – 2,000 psig (0.689 barg – 138 barg)
Maximum Recommended Operating Ratio: 90 or 95% of the rupture disc's nominal (stamped) burst pressure
Seat Configuration: Flat seat
Service: Liquid or gas
Compatible with BDI Alarm System?: Yes
ASME Code Symbol Stamp Available?: Yes
