Description

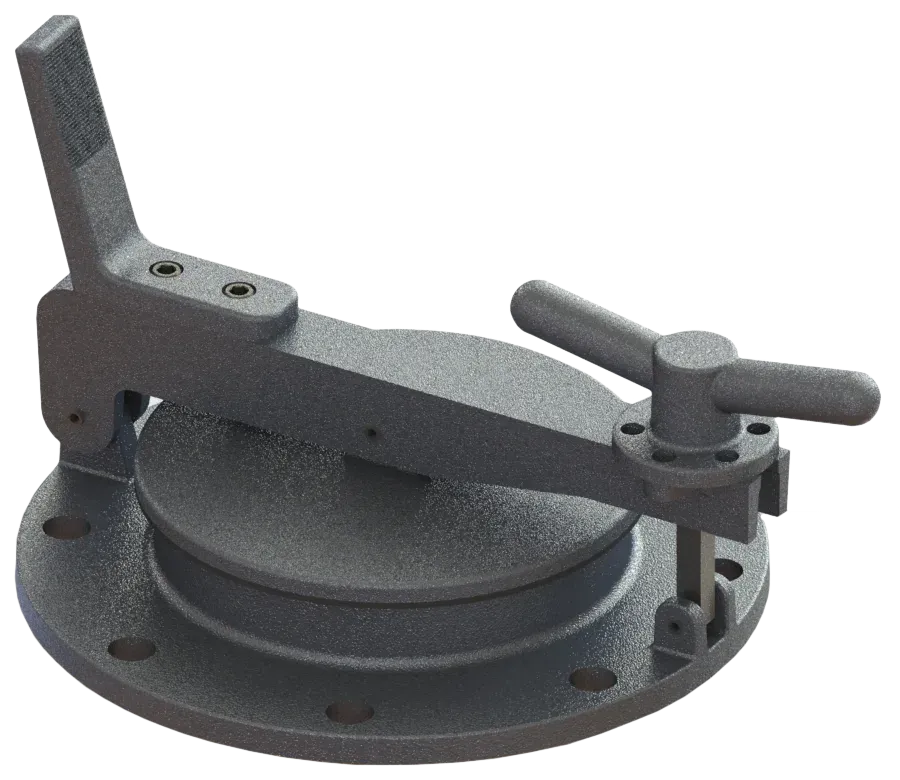

The Groth Model 61T Gauge Hatch provides access for measuring or sampling products in storage tanks. The hatch features a gauging hook built into the base to facilitate tank sampling. The Model 61T Gauge Hatch incorporates an "air-cushioned" seat system, which ensures a superior seal to minimize fugitive emissions.
Allows the use of both hands during gauging or sampling
Ultra-tight sealing reduces product leakage and fugitive emissions
Designed for easy maintenance, reducing downtime and operating costs
The gauge hatch can be mounted on 150# ASME flanges or with DIN bolting
Incorporates a mechanical locking system for use with a padlock or locking bar
Grounding straps come standard
Serrated foot pedal surface prevents foot slippage when opening
Sizes: 4” (100 mm) to 10” (250 mm)
Material of Construction: Aluminum (Non-Sparking), Carbon Steel, Stainless Steel
Bolting: 150# ASME, PN 10 DIN, PN 10/16 DIN, PN 16 DIN, Undrilled
Diaphragm: Buna-N (black), FKM (blue), or FEP (clear)
