Description

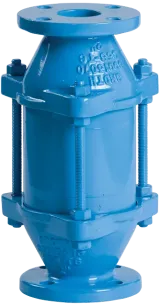

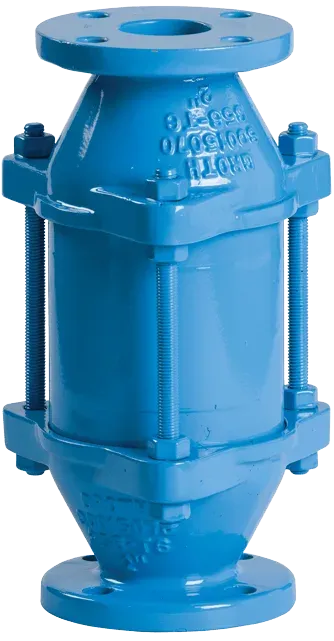

The Groth Model 7618 inhibits flame propagation in gas piping systems and protects low-pressure tanks containing flammable liquids. Use it to protect low-flash-point liquids from external ignition sources and increase fire protection and safety. For vertical installation only
• Vertical installation
• Unique recessed seat for superior protection
• Quick and easy maintenance
• Modular design that allows easy and cost-effective maintenance of the flame bank
• The flame arrester element geometry maximizes flame-quenching capacity while minimizing pressure drop
• Proven flame element with crimped ribbon wound in a spiral that provides reliable protection
• Flange sizes: 2” (DN50) to 12” (DN300)
• Standard body material: Aluminum, Carbon Steel, Stainless Steel
• Standard base material: Aluminum, Carbon Steel, Stainless Steel
• Standard flame element material: 316L Stainless Steel
• Operating temperature range: <= 140°F (60°C)
External paint or coating available
Weather cover (replaces the flanged outlet)
DIN or ASME/ANSI drilling available
Threaded drain and instrumentation ports available
