Description

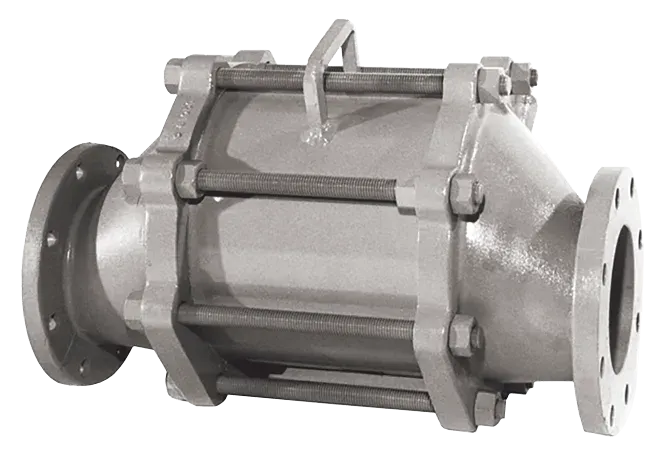

The Groth Model 7628 is designed to inhibit flame propagation in gas piping systems and protect low-pressure tanks containing flammable liquids. Arresters protect low-flash-point liquids from external ignition sources, providing greater fire protection and safety.
• Horizontal installation
• The flame arrester element geometry maximizes flame-quenching capacity while minimizing pressure drop
• Flame element with crimped ribbon wound in a spiral
• Modular design that allows easy and cost-effective maintenance of the flame bank
• Compact design that reduces weight and installation cost
• Eccentric design that minimizes liquid accumulation
• Sizes: 2” (DN50) to 12” (DN300)
• Material: Aluminum, Carbon Steel, Stainless Steel
• Flame Element Material: 316L Stainless Steel
• Operating Temperature: <= 140°F (60°C)
External paint or coating available
DIN or ASME/ANSI drilling available
Threaded drain and instrumentation ports available
