Description
A versatile flat-seat composite rupture disc that can function as an environmental seal, corrosion barrier or isolate the outlet side of low-pressure storage vessels.

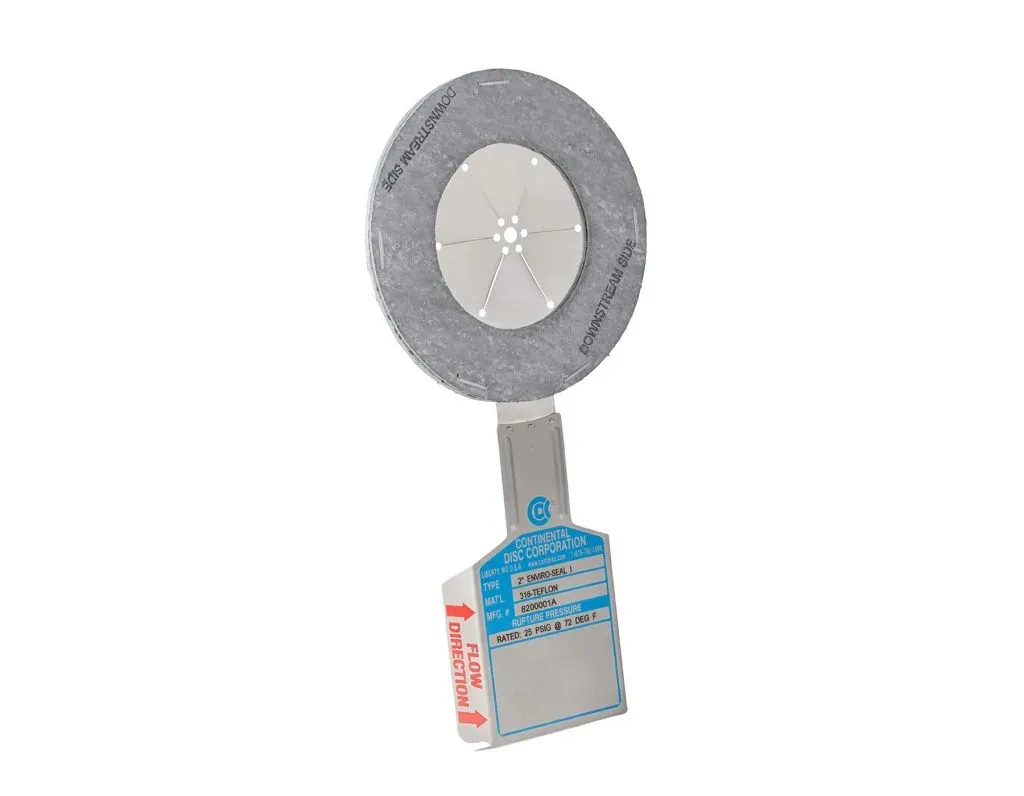

The ENVIRO-SEAL consists of a metal top section and a non-metallic seal. Depending on the design you need, the seal can be on the process side, on both sides (process and vent), or between two metal top sections. The ENVIRO-SEAL is installed between standard mating flanges with ASME, DIN or JIS bore.
Need an economical corrosion barrier or environmental seal? The ENVIRO-SEAL rupture disc will get the job done with excellent performance and a non-fragmenting design.
The ENVIRO-SEAL is a flat-seat composite rupture disc that is installed between standard mating flanges with ASME, DIN or JIS bore. Use it to isolate the outlet side of low-pressure atmospheric storage vessels, pressure relief valves and other equipment in corrosive environments.
Built for your application
The ENVIRO-SEAL consists of a metal top section and a non-metallic seal. Depending on the design you need, the seal can be on the process side, on both sides (process and vent), or between two metal top sections.
The ENVIRO-SEAL top section is designed with our seven-hole pattern to prevent fragmentation. As standard, the ENVIRO-SEAL is manufactured in 316 stainless steel, with fluoropolymer seals and a non-asbestos gasket on both sides of the rupture disc. Standard sizes range from 1" (25 mm) to 36" (900 mm).
ENVIRO-SEAL rupture discs are available in three designs:
Type I: Bursts in one direction only
Types II and III: Burst in both directions, positive or vacuum, at the same burst pressure
Nominal size range: 1″ – 36″ (25 mm – 900 mm)
Burst pressure range: 1 psig – 59 psig (0.069 barg – 4.07 barg)
Maximum recommended operating ratio: 50% of the rupture disc's nominal (stamped) burst pressure
Seat configuration: Flat seat
Service: Liquid or gas
BDI alarm system compatible?: Yes
ASME Code Symbol stamp available?: Yes
Materials not listed or shown may be available through special design. Contact us for more information.
The ENVIRO-SEAL is recommended only for isolating safety relief valves on the outlet side of the valve.
