Description
A rupture disc holder that reduces dead space in "T" piping assemblies, eliminating buildup and preventing interference or overpressure.

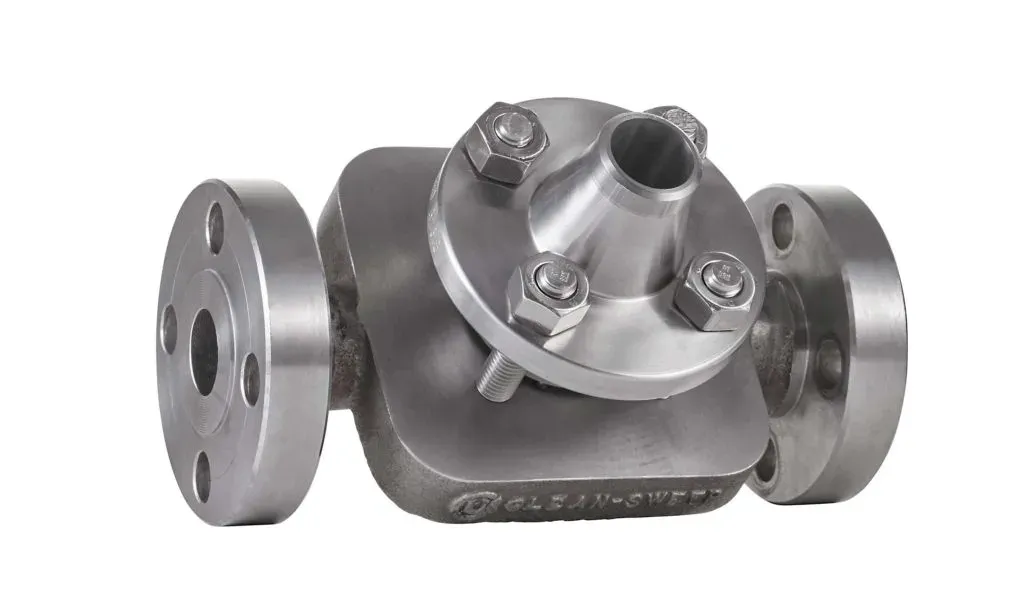

Keep your rupture disc clean, accurate, and operational with the CLEAN-SWEEP assembly. Designed for processes with viscous media, the CLEAN-SWEEP assembly is an ideal choice to replace rupture disc assemblies where product buildup could affect proper operation. With the CLEAN-SWEEP assembly installed, the rupture disc is mounted directly adjacent to the process flow.
Keep your rupture disc clean, accurate, and operational with the CLEAN-SWEEP assembly. Designed for processes with viscous media, the CLEAN-SWEEP assembly significantly reduces dead space in rupture disc assemblies on "T" piping, eliminating product buildup and preventing interference or excessive overpressure.
This holder is an ideal choice to replace rupture disc assemblies installed on the branch of a "T" pipe where product buildup could affect the proper operation of the rupture disc. With the CLEAN-SWEEP assembly installed, the rupture disc is mounted directly adjacent to the process flow.
For many years, "T" pipes were used in process lines with the rupture disc assembly installed on the branch of the "T". However, the buildup of viscous products could affect the operation and accuracy of the rupture disc.
The CLEAN-SWEEP assembly eliminates dead space in "T" piping assemblies, as well as the pressure, temperature, and material availability limitations caused by older designs based on diaphragm valve bodies.
With the CLEAN-SWEEP, the rupture disc is mounted directly in the cast body, adjacent to the process flow. It requires fewer sealed joints and considerably reduces the possibility of product buildup or dead space beneath the rupture disc.
Designed for operating pressures up to 1,440 psig (99.3 barg), the CLEAN-SWEEP assembly is custom manufactured for ASME, DIN, JIS bolting classes or as specified by the customer. Alignment pins at the assembly inlet provide the correct orientation of the rupture disc during installation. Once installed, the three-dimensional flow direction tag, which is permanently attached to the rupture disc, serves as a visual reference that the rupture disc will discharge in the intended flow direction.
The CLEAN-SWEEP assembly is designed to house a composite rupture disc (CF) or a MICRO X rupture disc (CF), both with a flat-seat configuration.
Nominal Size Range: 1″ – 6″ (25 mm – 150 mm)
Burst Pressure Range: 3 psig – 1,440 psig (0.207 barg – 99.3 barg)
Recommended Operating Ratio: N/A
Seat Configuration: Flat seat
Service: Viscous media
Compatible with BDI Alarm System?: Yes
ASME Code Symbol Stamp Available?: Yes
Materials not listed or shown may be available through special design. Contact us for more information.
