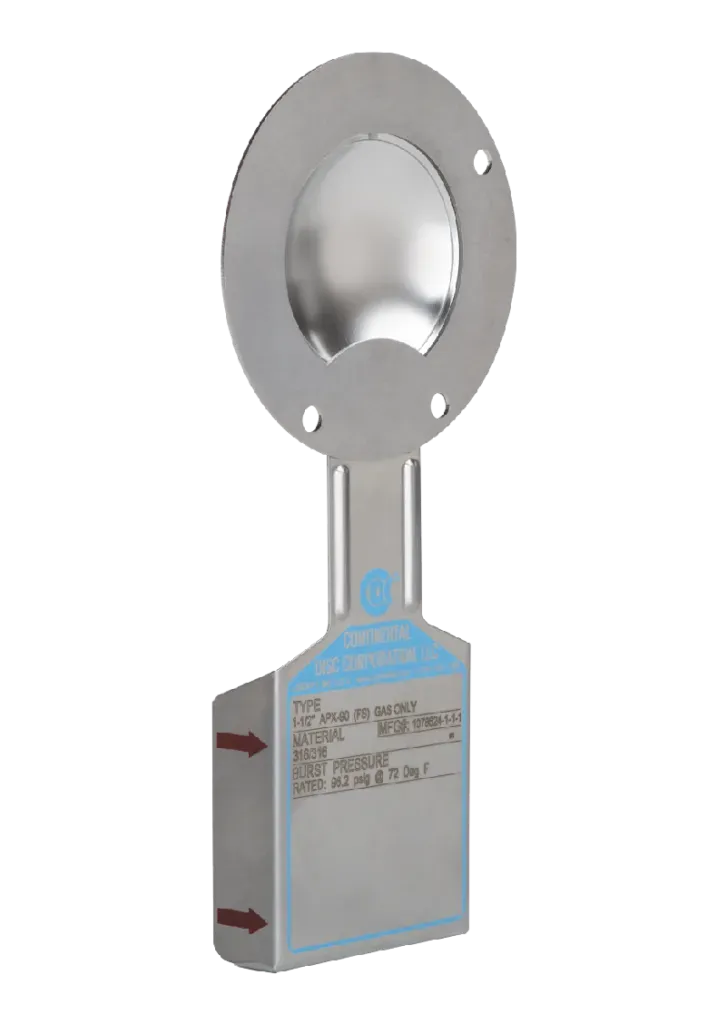

APX™ Rupture Disc
APX™ Rupture Disc
APX™ Rupture Disc APX™ Rupture Disc

APX™ Rupture Disc

Price on request
HPX Rupture Disc Family
Continental Disc
Request a quote

We reply Monday to Friday, 9:00 a.m. to 6:00 p.m. (Mexico City time) · +52 55 2458 7374

Description

A semicircular, scored, reverse-acting rupture disc, ideal for liquid, gas, or vapor applications.

Designed for use in toxic and corrosive environments, the APX rupture disc combines the performance of Continental Disc rupture discs with materials that resist the most challenging process media. The APX continues the legacy of the flagship HPX® product with low Kr factors, high cycling capability, and the quality certifications you expect from Continental Disc Corporation.

The Continental Disc APX™ rupture disc is a reverse-acting rupture disc with semicircular scoring, ideal for liquid or gas/vapor applications. In performance, accuracy and durability, the APX rupture disc outperforms the competition. One of the many benefits of the APX is the flexibility to adapt it to customer requirements, particularly regarding holder materials of construction.

Designed for use in toxic and corrosive environments, the APX rupture disc combines the performance of Continental Disc rupture discs with materials that resist the most demanding process fluids. The APX carries on the legacy of the flagship HPX® product with low Kr factors, high cycling capability and the quality certifications you expect from Continental Disc Corporation.

Optimal material thickness and tooling design provide not only the full opening and accurate burst pressure you expect, but also longer service life at the higher operating ratios (operating pressure to burst pressure) that today's process industries demand.

• Developed for highly toxic and/or corrosive services.
• Operating ratio capabilities of up to 95% of burst pressure to meet industry standards.
• Wide range of burst ratings from 20 to 600 psi to meet a broad range of toxic service applications.
• Standard-height, reduced-height, and custom-height holders available to accommodate piping constraints.
• Dual-disc and pre-torqued holders available to expand overpressure protection applications in toxic services.
• The rupture disc can be operated at full vacuum.

Technical details

• Size range: 1” to 4” (25 mm – 100 mm)
• Rupture disc materials: Nickel, Alloy 400, 316 SS, 316L SS, Alloy C276, Alloy 600
• Burst pressure range: 20 psig – 600 psig (1.38 barg – 41.37 barg)
• Maximum recommended operating ratio: 90 or 95% of the rupture disc's nominal (stamped) burst pressure
• Seat configuration: Flat seat
• Service: Liquid or gas*
• BDI alarm system compatible: Yes (Universal B.D.I. or BDI-FLX)
• ASME Code symbol stamp available: Yes
• CRN available: Yes
• CE marking available: Yes
• ATEX assessment available: Yes
• Holder materials: Duplex, Super Duplex, Super Austenitic, 304/304L SS, Alloy C22, Alloy 625, Titanium, and other materials upon request.

Options

• Fluoropolymer coating available for corrosion protection on the process and/or vent side of the rupture disc
• Cleaning available for oxygen or chlorine service.

×
×
